KC25TE

KC25TE

KC25TE
2500kg
Rated Load

KC25TE

1. Stable and Efficient Operation: Air-cooling technology ensures motor stability. The rear frame-mounted driving position enhances safety and stability.
2. Durable Structure: Reinforced steel plates on the front and rear frames increase rigidity. The extended equipment lifespan reduces operational costs.
3. Green and Low Energy Consumption: Electric-powered with zero emissions and low noise, providing a comfortable driving environment.
4. Low Maintenance Costs: Electric motors require minimal maintenance with low failure rates, saving on maintenance expenses.
5. Flexible Operation: The full hydraulic steering system allows easy maneuvering. A small turning radius enables flexible operation in indoor and outdoor confined spaces, adapting to various complex working conditions.

No Image

Key Features

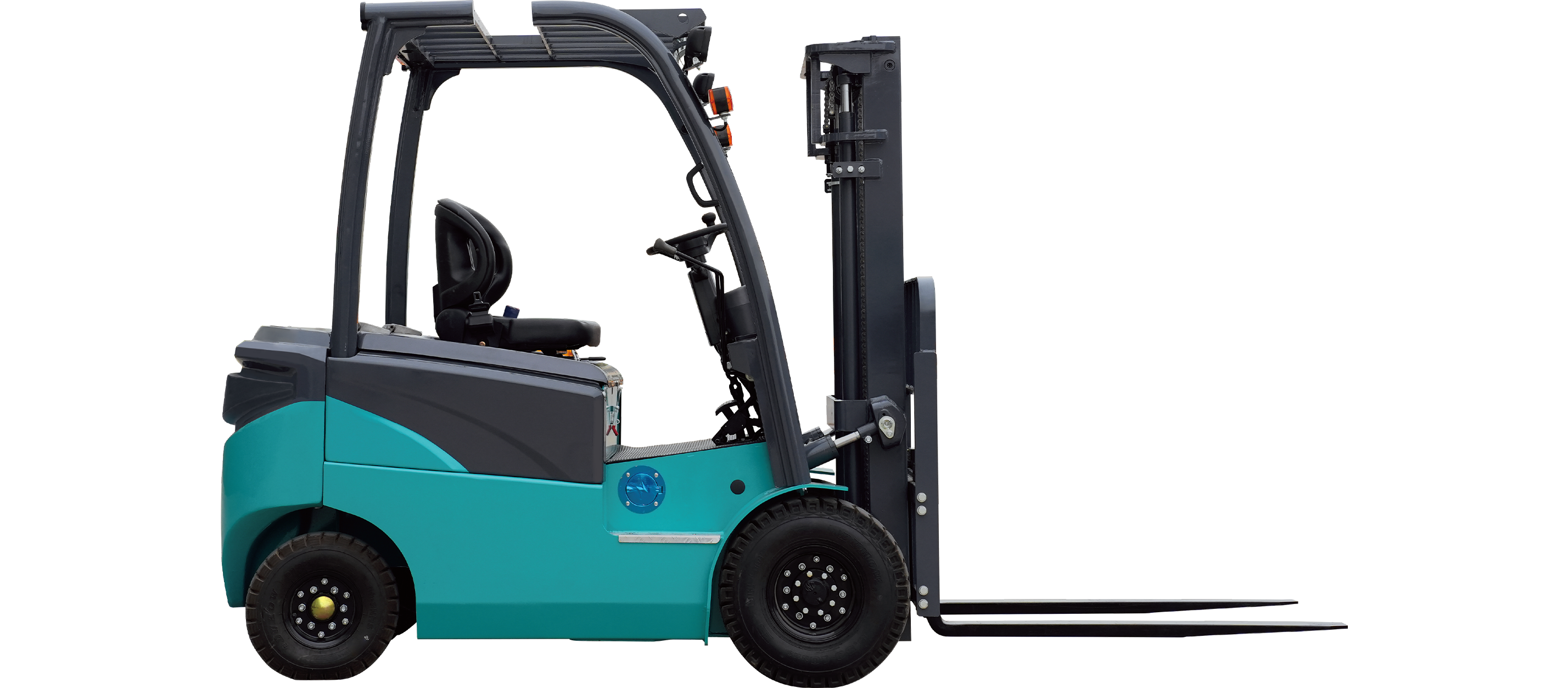

KC25TE SIDE

Technical Data

2500kg
Rated Load
Wheelbase1520 mm
Rated Load2500 kg
Control TypeAC
Overall Width1140/1155 mm
Overall Height2090 mm
Overall Length2300/3290 mm
Unladen Weight3300 kg
Mast Tilt Angle6/10°
Max Overall Height4120 mm
Min Turning Radius2150 mm
Lifting Motor Power7.5 kW
Traction Motor Power7.5 kW
Max Gradeability Full Load15°
Max Travel Speed Full Load14 km/h
Max Lifting Speed Full Load300 mm/s
Max Traction Force Full Load16 kN
