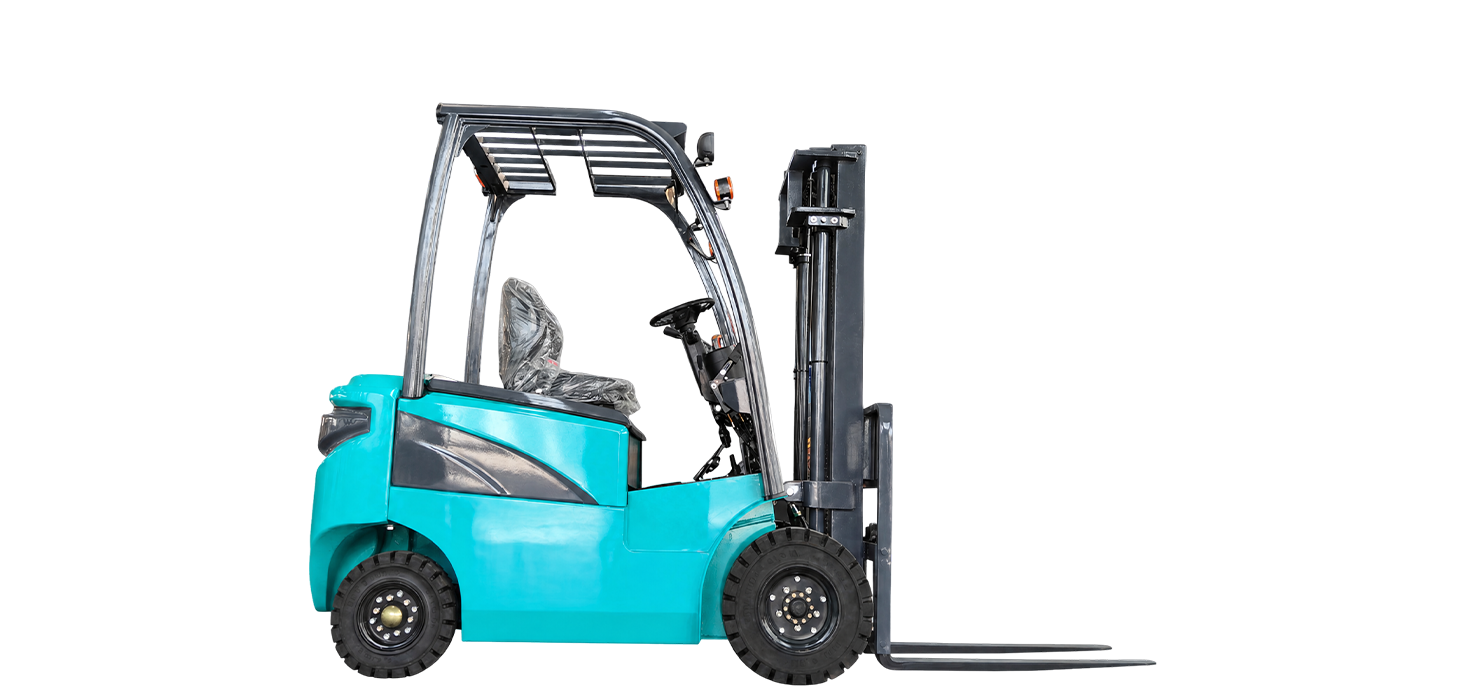

KC35TE

KC35TE

KC35TE
3500kg
Rated Load

KC35TE

none

No Image

Key Features

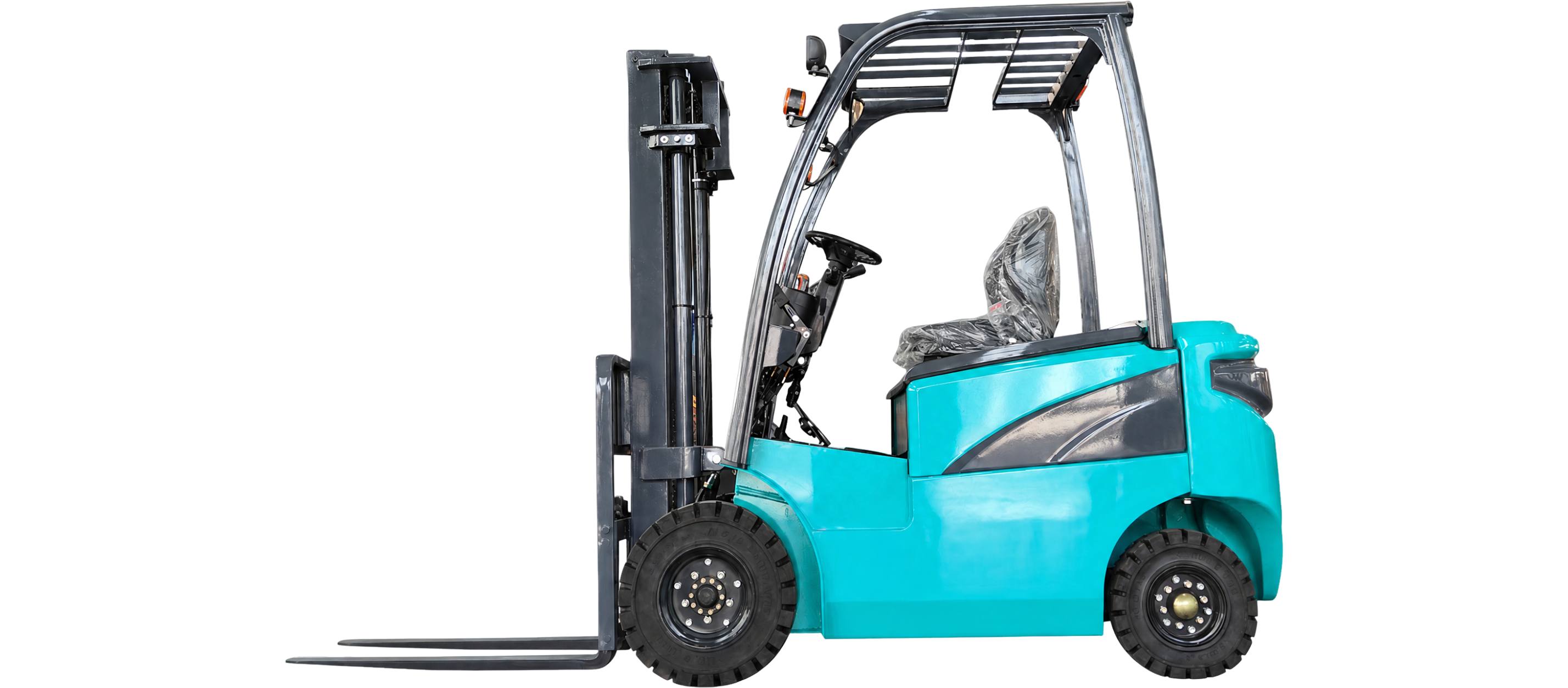

KC35TE SIDE

Technical Data

3500kg
Rated Load
Wheelbase1740 mm
Rated Load3500 kg
Control TypeAC
Overall Width1220/1230 mm
Overall Height2160 mm
Overall Length2610/3700 mm
Unladen Weight4650 kg
Mast Tilt Angle6/10°
Max Overall Height4070 mm
Min Turning Radius2250 mm
Lifting Motor Power15 kW
Traction Motor Power12 kW
Max Gradeability Full Load15°
Max Travel Speed Full Load15 km/h
Max Lifting Speed Full Load280 mm/s
Max Traction Force Full Load25 kN

Attachments

360° Rotating Grapple

360° Rotating Grapple

Forklift Forks with Upper Tines

Forklift Forks with Upper Tines

Forks with Three Upper Tines

Forks with Three Upper Tines

High-Dump Grain Bucket

High-Dump Grain Bucket

Bucket

Bucket

Snow Blower

Snow Blower
