KL908E

KL908E

KL908E
800kg
Rated Load Capacity

KL908E

1. KL908E compact electric loader features pure electric drive, green and environmentally friendly with zero exhaust emissions.
2. Equipped with high-performance lithium battery, strong power and long endurance to meet long-hour operation requirements.
3. Efficient electric drive system ensures smooth start, fast response and precise control.
4. Safe and comfortable fully enclosed cab with wide vision, shock absorption and noise reduction for easier operation.
5. Compact body design, small turning radius, flexible movement in narrow spaces and excellent trafficability.
6. Ergonomic layout, clear instrument and convenient buttons, comfortable to operate without fatigue.
7. Low maintenance cost, simple and reliable structure, easy to inspect and maintain.
8. Supports quick coupler system, compatible with various attachments to meet loading, handling, cleaning and other working scenarios.

No Image

Key Features

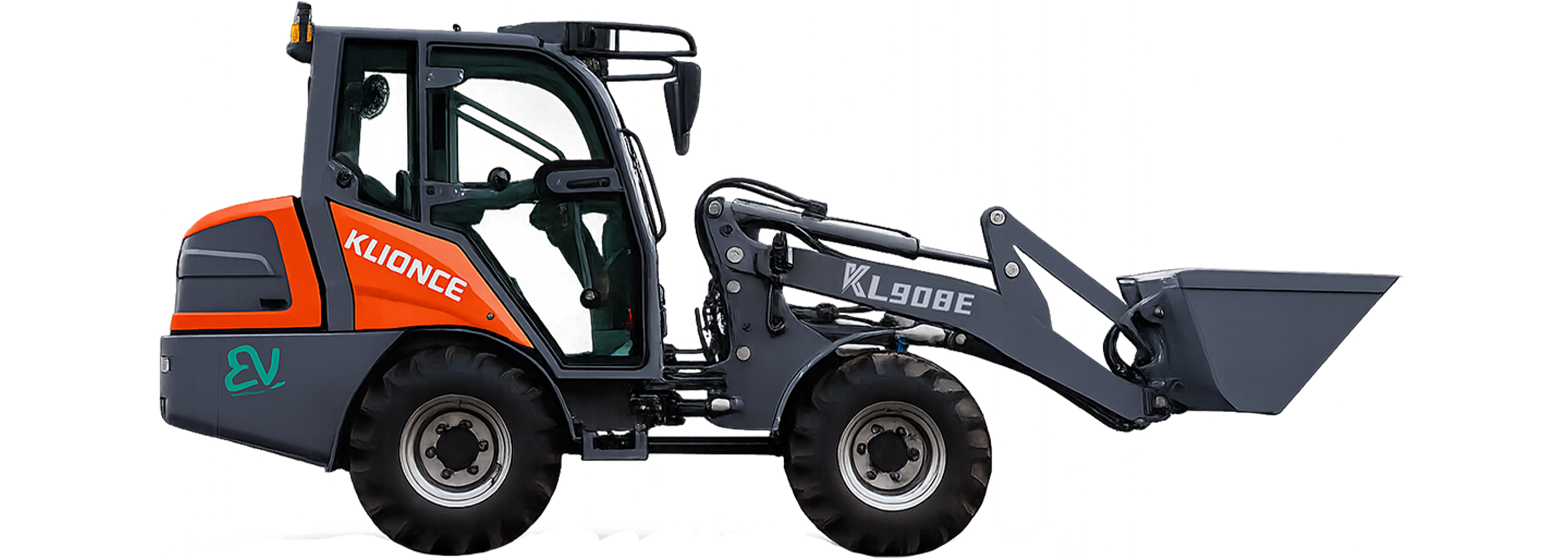

KL908E SIDE

Technical Data

800kg
Rated Load Capacity
Rated Load Capacity800 kg
Rated Torque90 Nm
Travel Speed0-20 km/h
Max Torque160 Nm
Total Weight2790 kg (Standard quick change)
Overall Dimensions4690×1440×2000 mm
Battery Capacity80V 280Ah
Traction Motor Spec53V 280A / 26kW
Cooling SystemAir Cooling
Working Pressure18 MPa
Min Turning Radius3280 mm
Inner Tire Radius1450 mm
Bucket Width1400 mm
Tow Pin Height730 mm
Drive TypeElectric Drive
