KL908C

KL908C

KL908C
0.33
Bucket Capacity
2300mm
Dump Height
2532kg
Operating Weight

KL908C

1. The working device has been carefully optimized, demonstrating remarkable characteristics of strong digging force, high bucket filling rate, and excellent operational efficiency, providing powerful driving force for various engineering operations.
2. Systems of the machine are scientifically and reasonably matched to ensure high equipment operation reliability and significantly reduced failure rate, bringing users a durable and stable using experience.
3. Advanced waterproof and anti-corrosion electrical connectors are used, ensuring normal equipment operation even in harsh environments such as rainy weather, high corrosion, and heavy dust, allowing users to work worry-free.

No Image

Key Features

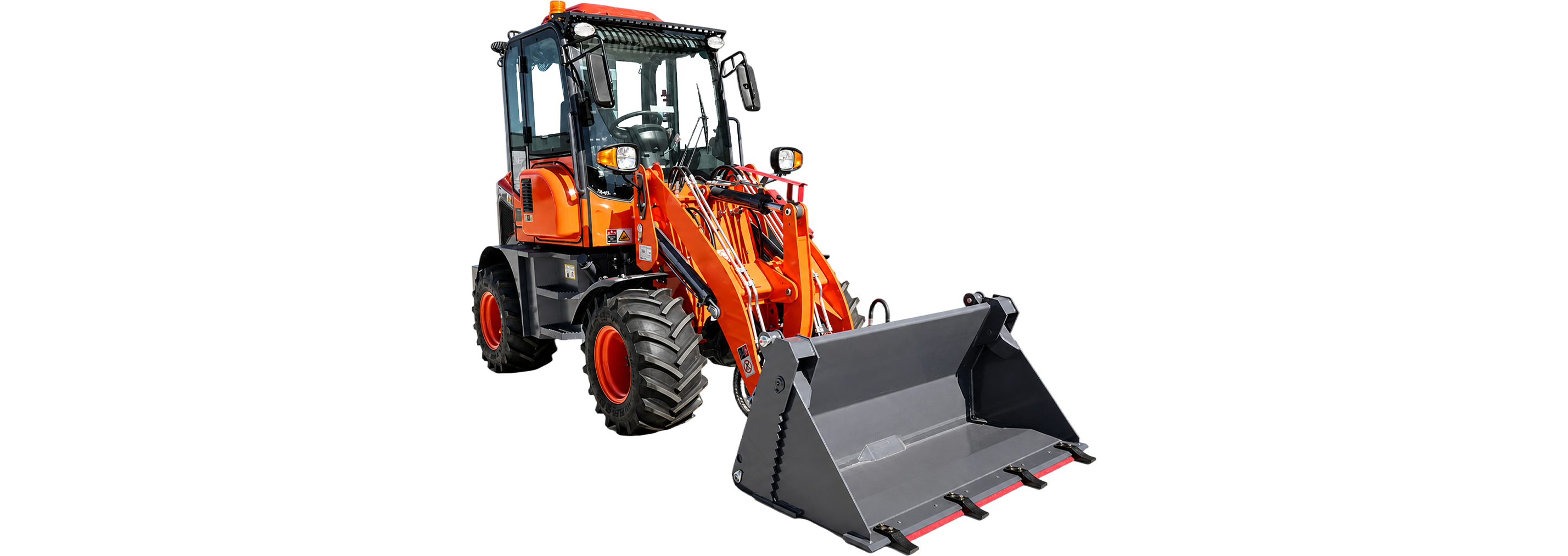

KL908C SIDE

Technical Data

0.33
Bucket Capacity
2300mm
Dump Height
2532kg
Operating Weight
Operating Weight2532 kg
Bucket Capacity0.33 m³
Dump Height2300 mm
Dump Distance690 mm
Overall Dimensions4530×1550×2610 mm (with warning light)
Bucket Width1400 mm
Arm Thickness16 mm
Boom Center Distance680 mm
Track Width1130 mm
Wheelbase1905 mm
Min Ground Clearance220 mm
