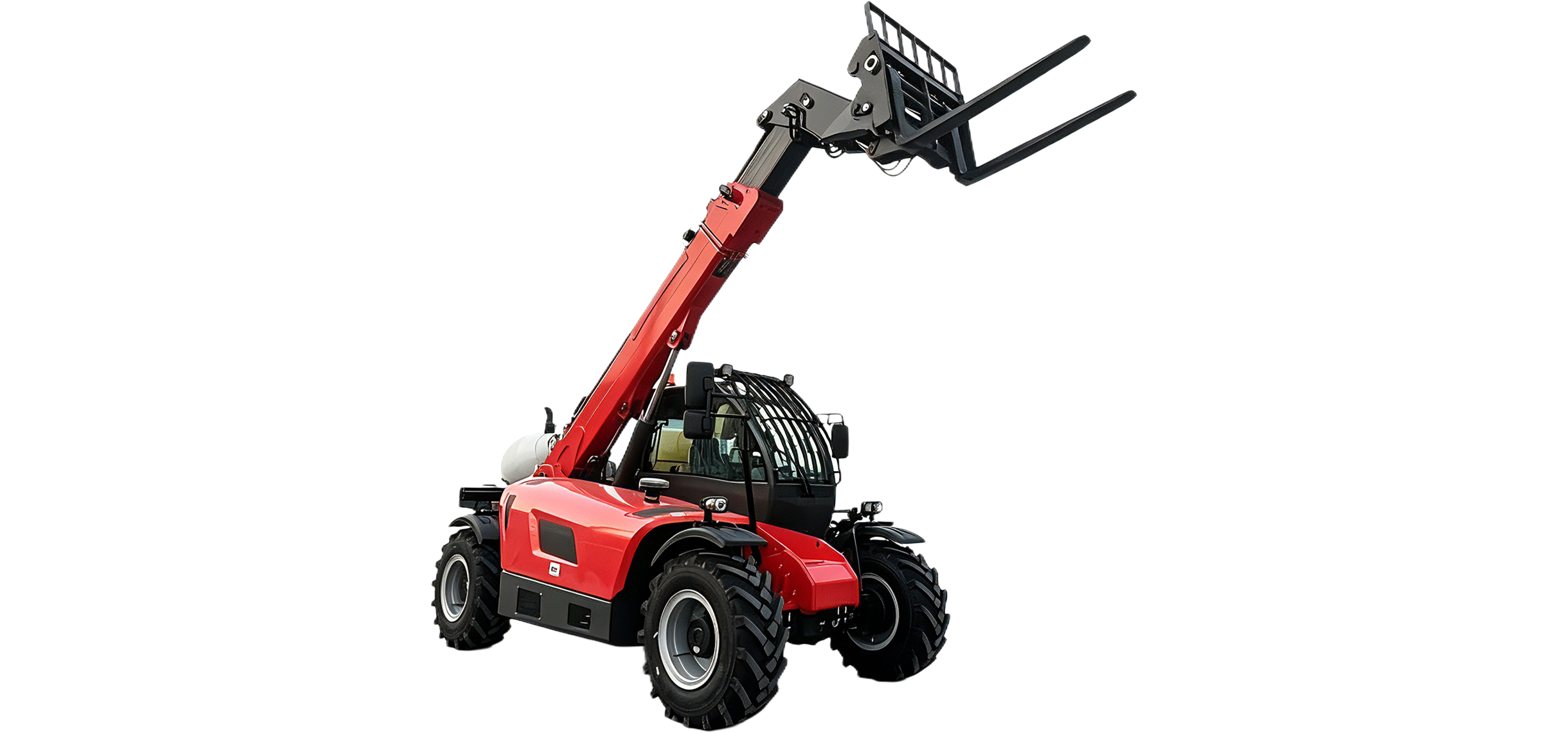

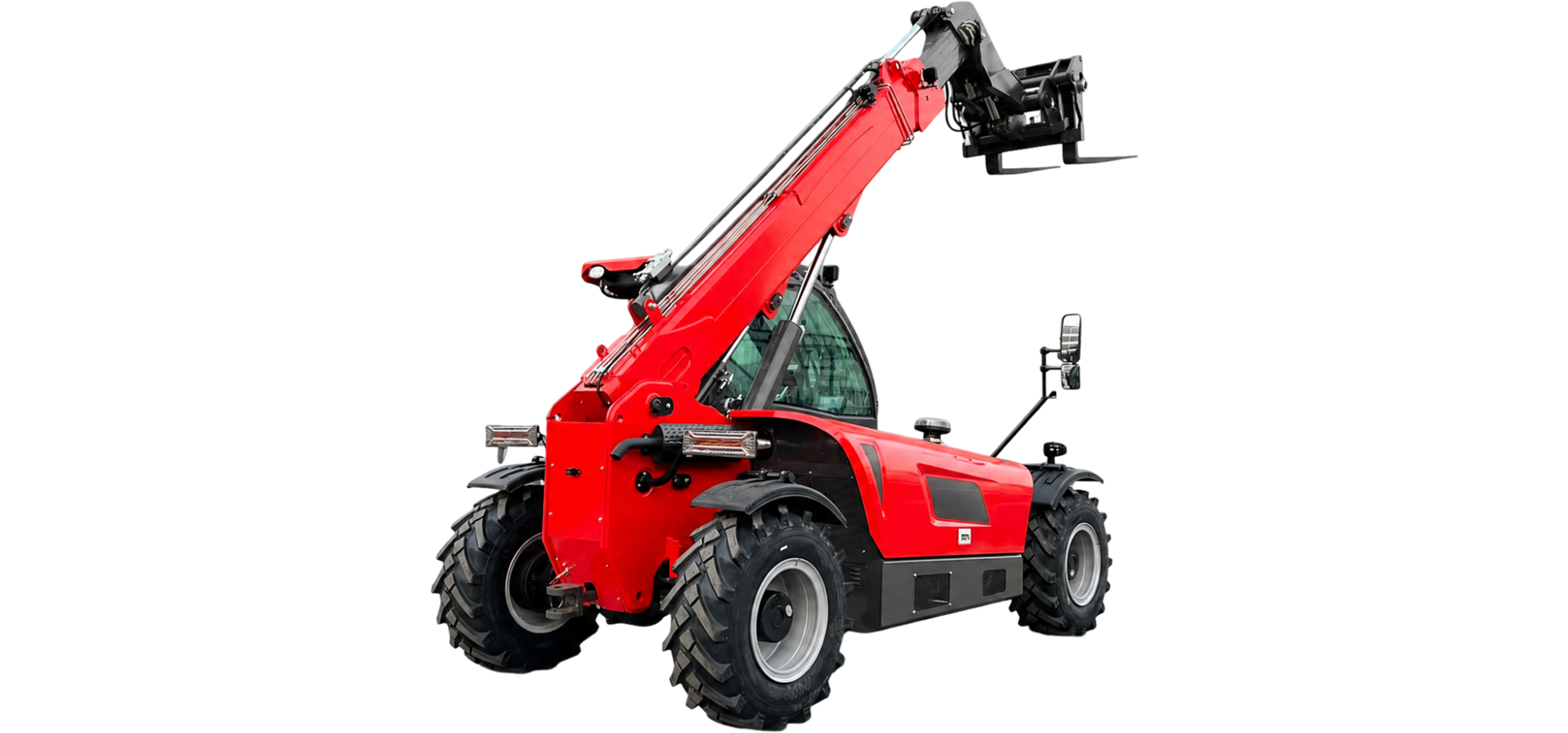

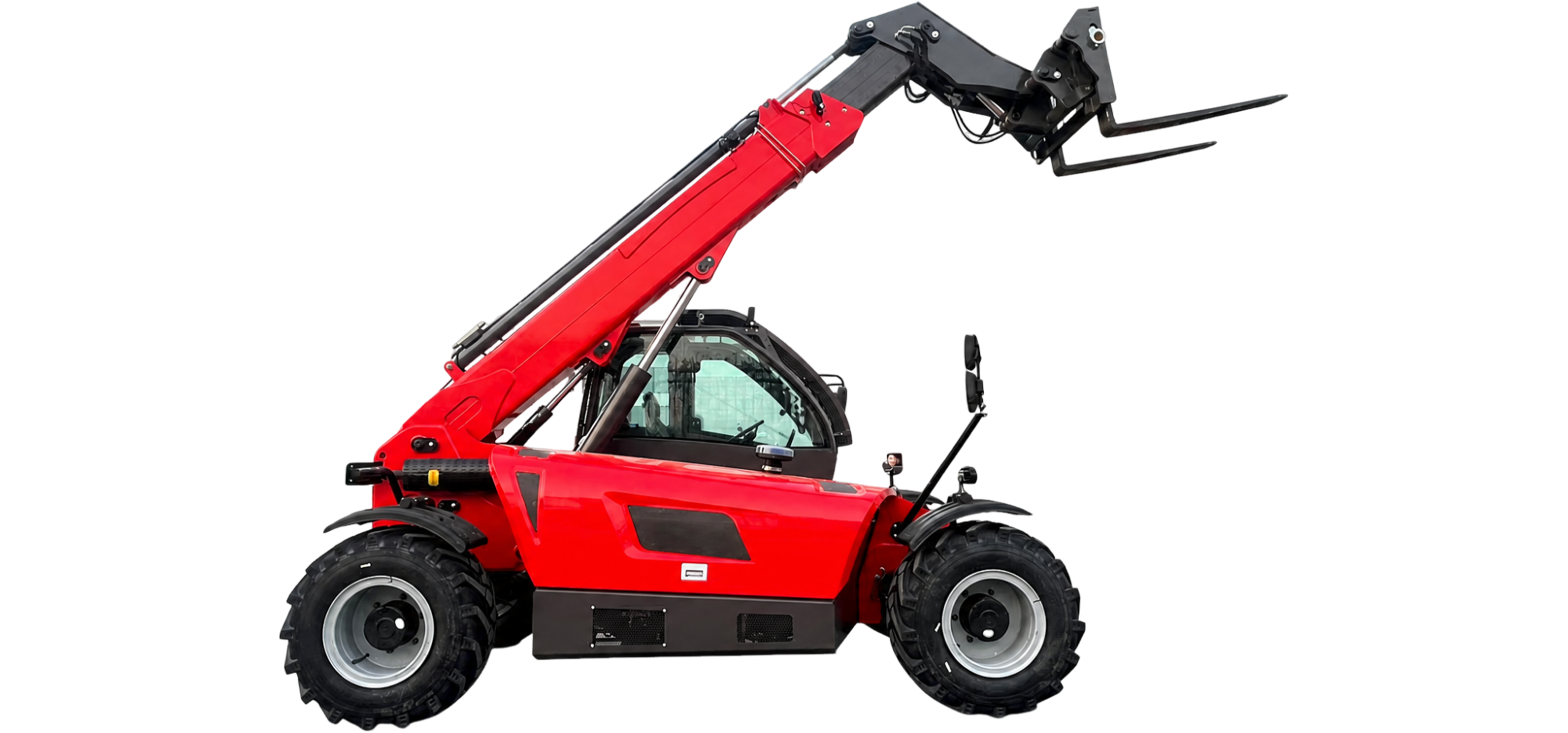

KL3507T

KL3507T

KL3507T
3500kg
Rated Load
7900kg
Operating Weight

KL3507T

none

No Image

Key Features

KL3507T SIDE

Technical Data

3500kg
Rated Load
7900kg
Operating Weight
Max Power76 kW
Max Reach3200 mm
Tire Type16/70-20
Wheelbase3150 mm
Drive Mode4WD
Rated Load3500 kg
Fork Length1220 mm
Engine ModelYN38GBZ Tier II
Cooling MethodWater Cooling
Ground Clearance350 mm
Max Gradeability≤50%
Max Travel Speed35 km/h
Operating Weight7900 kg
Fuel Tank Capacity100 L
Max Lifting Height7000 mm
Overall Dimensions5870×2200×2550 mm
Cab Safety StandardFOPS
Hydraulic Tank Capacity170 L

Attachments

360° Rotating Grapple

360° Rotating Grapple

Forklift Forks with Upper Tines

Forklift Forks with Upper Tines

Forks with Three Upper Tines

Forks with Three Upper Tines

High-Dump Grain Bucket

High-Dump Grain Bucket

Bucket

Bucket

Snow Blower

Snow Blower
