KL5010T

KL5010T

KL5010T
5000kg
Rated Load
12500kg
Operating Weight

KL5010T

none

No Image

Key Features

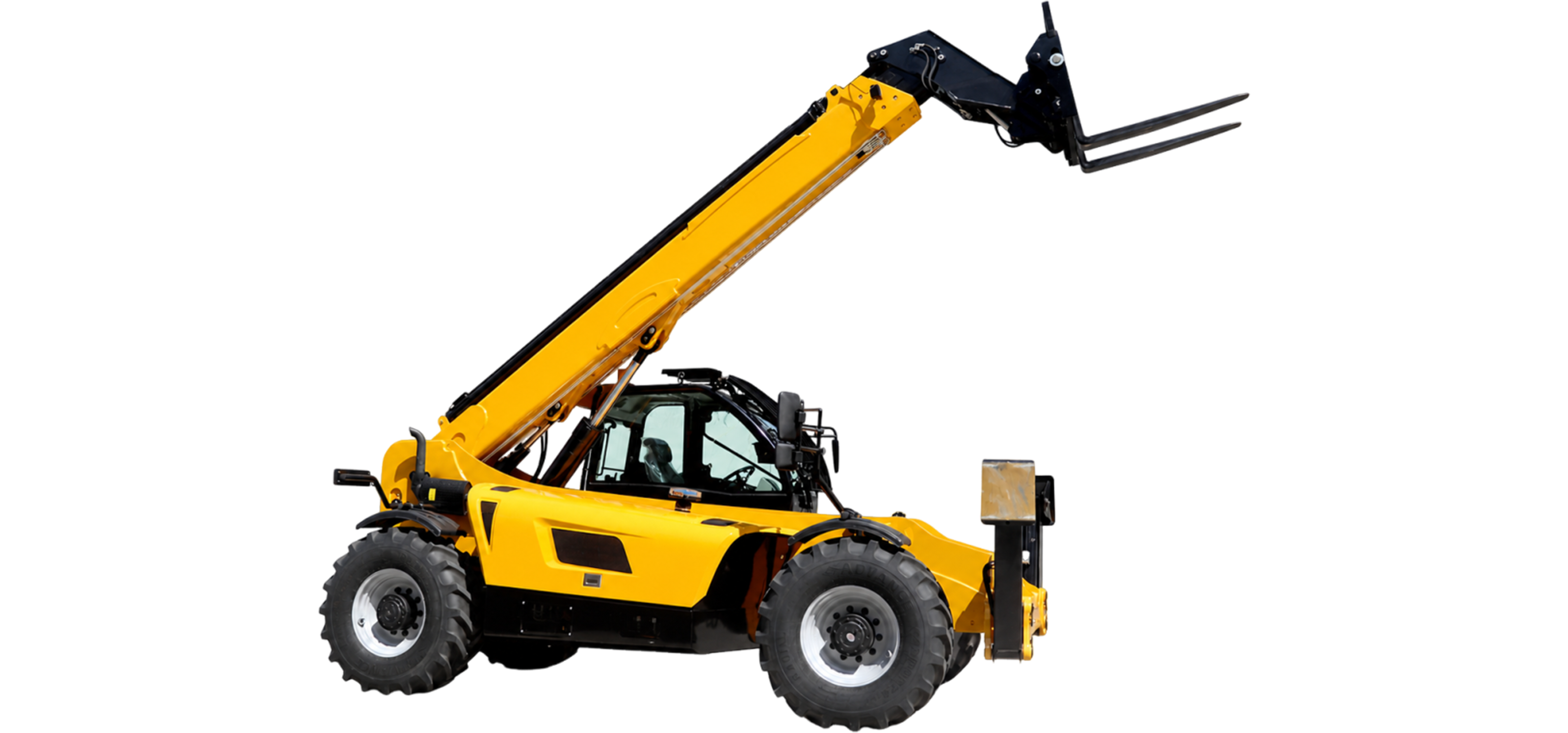

KL5010T SIDE

Technical Data

5000kg
Rated Load
12500kg
Operating Weight
Max Power91 kW
Max Reach5000 mm
Tire TypeSemi-solid 16/70-24
Wheelbase3600 mm
Drive Mode4WD
Rated Load5000 kg
Fork Length1220 mm
Engine ModelYCD4J22T Tier II
Cooling MethodWater Cooling
Ground Clearance380 mm
Max Gradeability≤50%
Max Travel Speed40 km/h
Operating Weight12500 kg
Fuel Tank Capacity195 L
Max Lifting Height9800 mm
Overall Dimensions7620×2350×2550 mm
Cab Safety StandardFOPS
Hydraulic Tank Capacity170 L

Attachments

360° Rotating Grapple

360° Rotating Grapple

Forklift Forks with Upper Tines

Forklift Forks with Upper Tines

Forks with Three Upper Tines

Forks with Three Upper Tines

High-Dump Grain Bucket

High-Dump Grain Bucket

Bucket

Bucket

Snow Blower

Snow Blower
