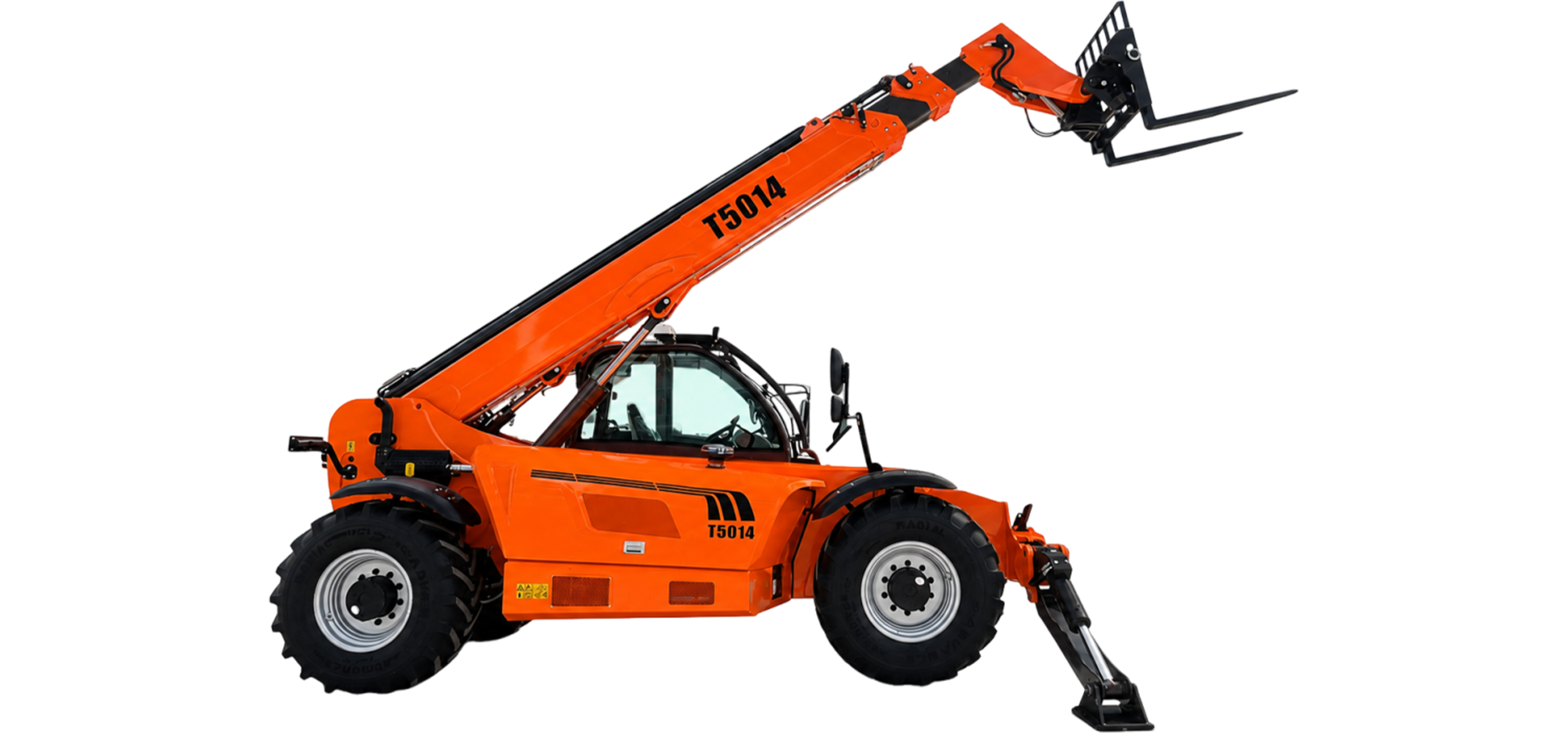

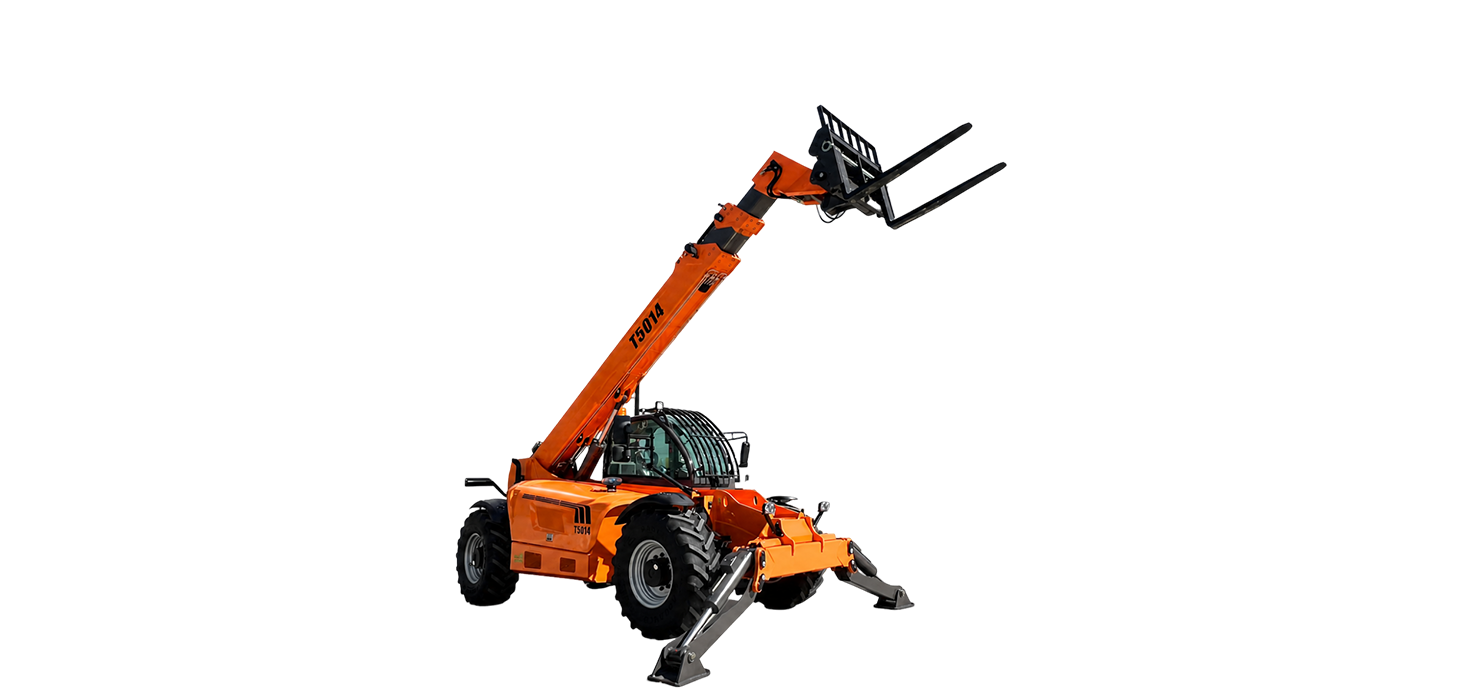

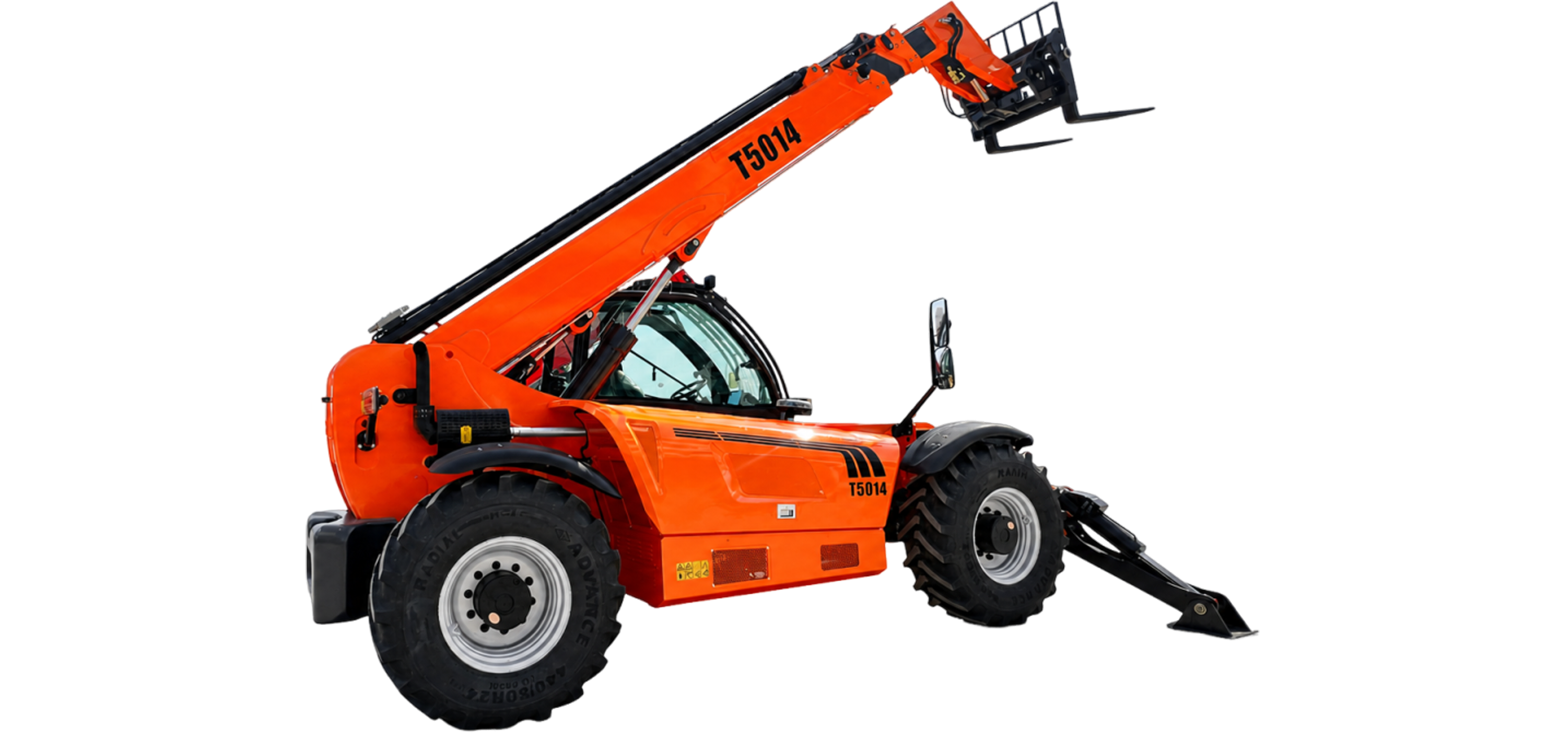

KL5014T

KL5014T

KL5014T
5000kg
Rated Load
13600kg
Operating Weight

KL5014T

none

No Image

Key Features

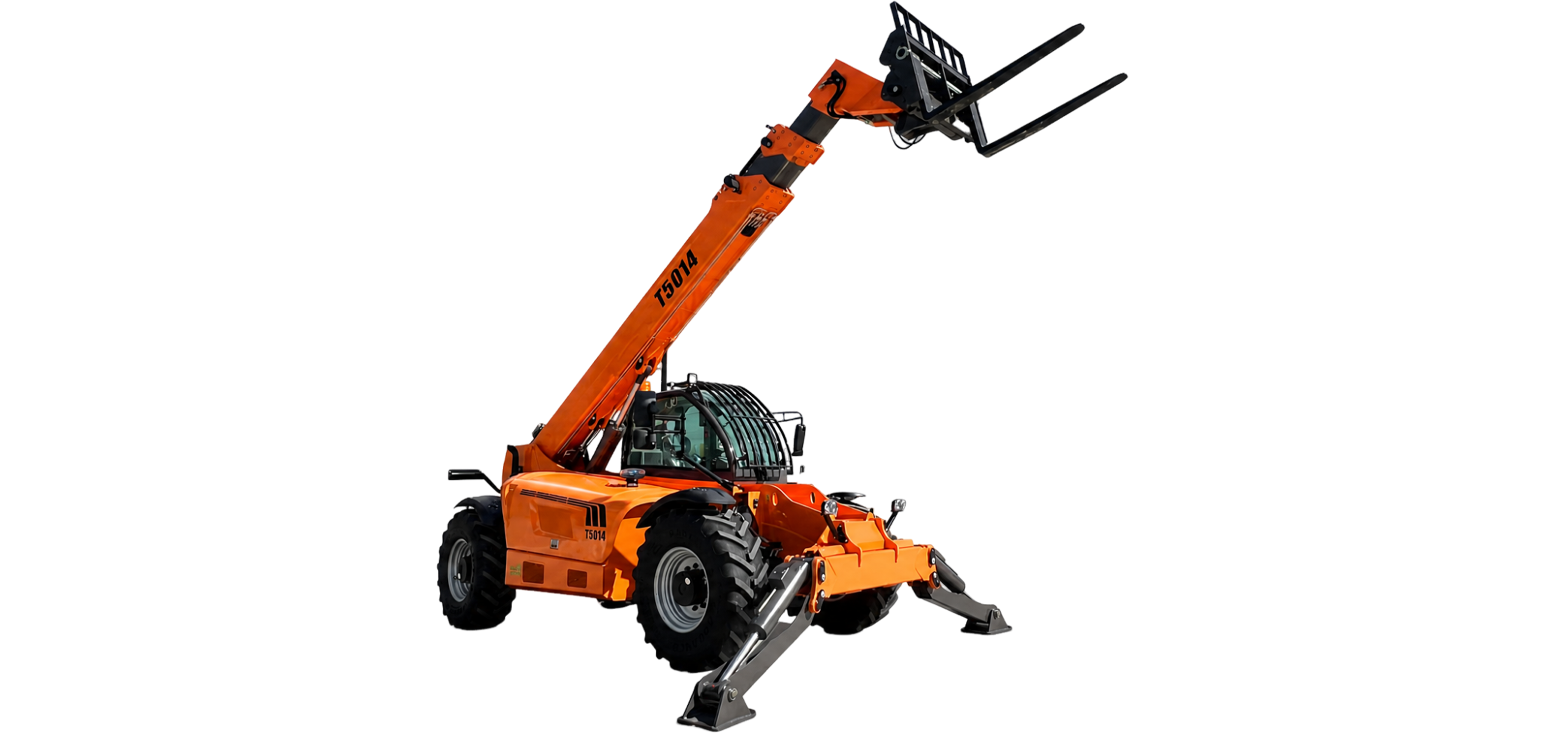

KL5014T SIDE

Technical Data

5000kg
Rated Load
13600kg
Operating Weight
Max Power91 kW
Max Reach8000 mm
Tire Type440/80-24
Wheelbase3600 mm
Drive Mode4WD
Rated Load5000 kg
Fork Length1220 mm
Engine ModelYCD4J22T Tier II
Cooling MethodWater Cooling
Ground Clearance380 mm
Max Gradeability≤50%
Max Travel Speed40 km/h
Operating Weight13600 kg
Fuel Tank Capacity195 L
Max Lifting Height13800 mm
Overall Dimensions7820×2350×2650 mm
Cab Safety StandardFOPS
Hydraulic Tank Capacity170 L

Attachments

360° Rotating Grapple

360° Rotating Grapple

Forklift Forks with Upper Tines

Forklift Forks with Upper Tines

Forks with Three Upper Tines

Forks with Three Upper Tines

High-Dump Grain Bucket

High-Dump Grain Bucket

Bucket

Bucket

Snow Blower

Snow Blower
