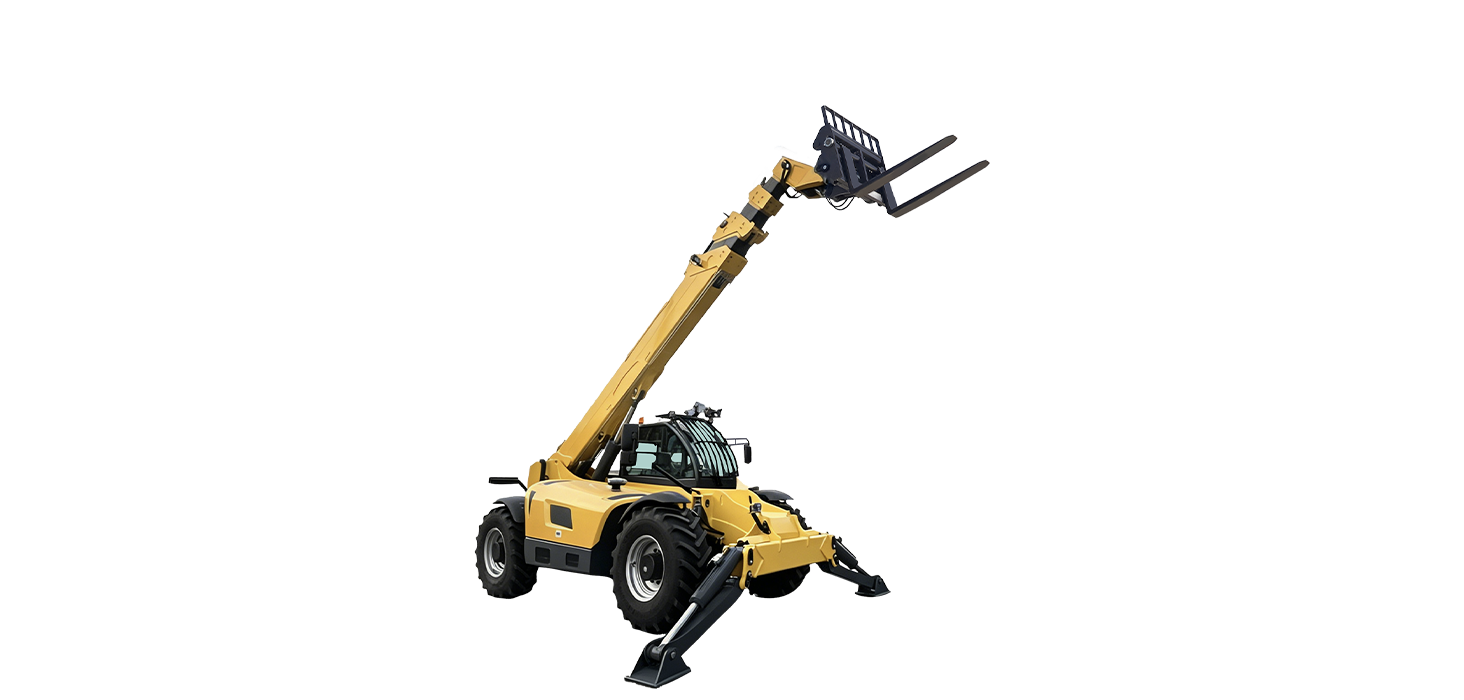

KL5018T

KL5018T

KL5018T
5000kg
Rated Load
14100kg
Operating Weight

KL5018T

none

No Image

Key Features

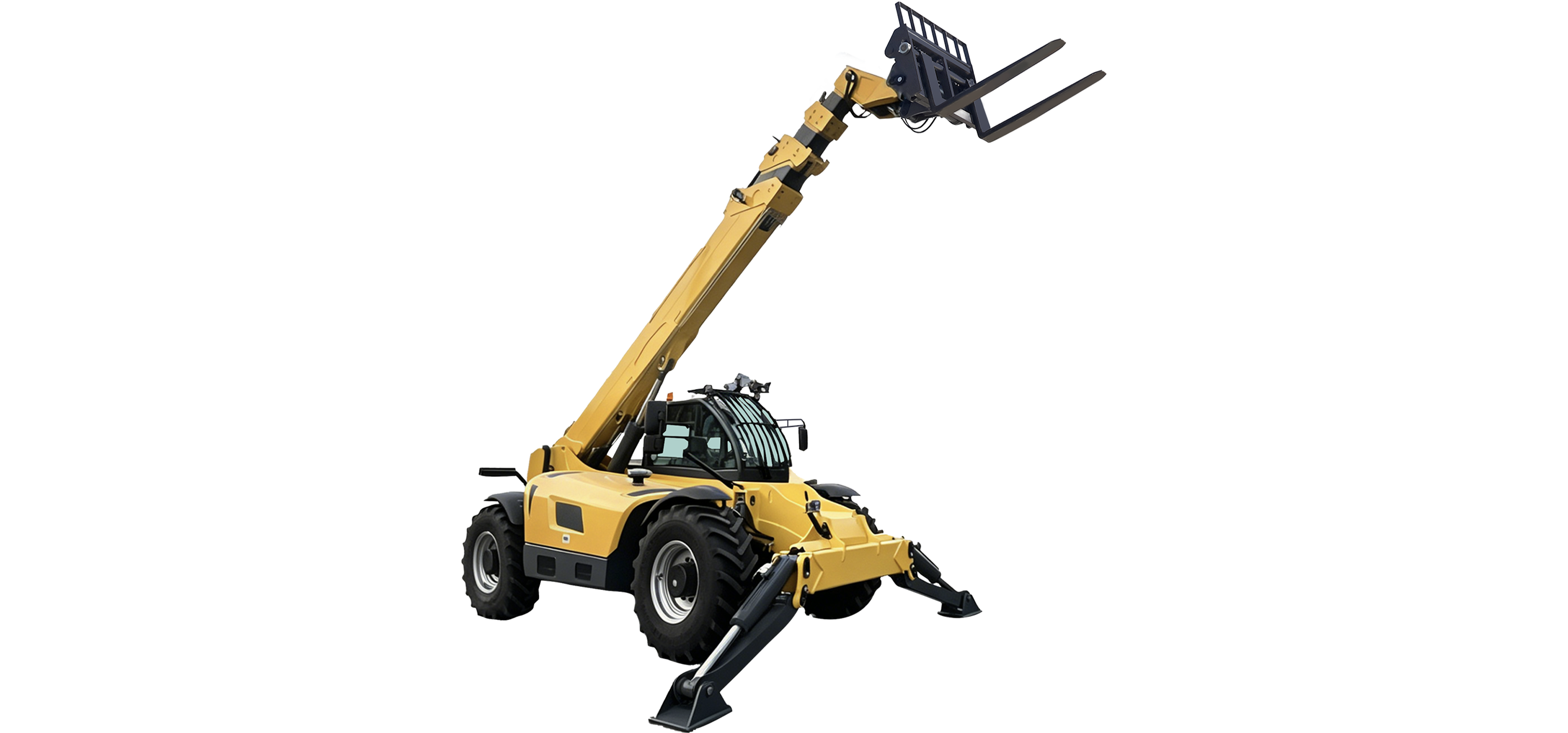

KL5018T SIDE

Technical Data

5000kg
Rated Load
14100kg
Operating Weight
Max Power91 kW
Max Reach11200 mm
Tire Type440/80-24
Wheelbase3600 mm
Drive Mode4WD
Rated Load5000 kg
Fork Length1220 mm
Engine ModelYCD4J22T Tier II
Cooling MethodWater Cooling
Ground Clearance380 mm
Max Gradeability≤50%
Max Travel Speed40 km/h
Operating Weight14100 kg
Fuel Tank Capacity195 L
Max Lifting Height17550 mm
Overall Dimensions7820×2350×2650 mm
Cab Safety StandardFOPS
Hydraulic Tank Capacity170 L

Attachments

360° Rotating Grapple

360° Rotating Grapple

Forklift Forks with Upper Tines

Forklift Forks with Upper Tines

Forks with Three Upper Tines

Forks with Three Upper Tines

High-Dump Grain Bucket

High-Dump Grain Bucket

Bucket

Bucket

Snow Blower

Snow Blower
