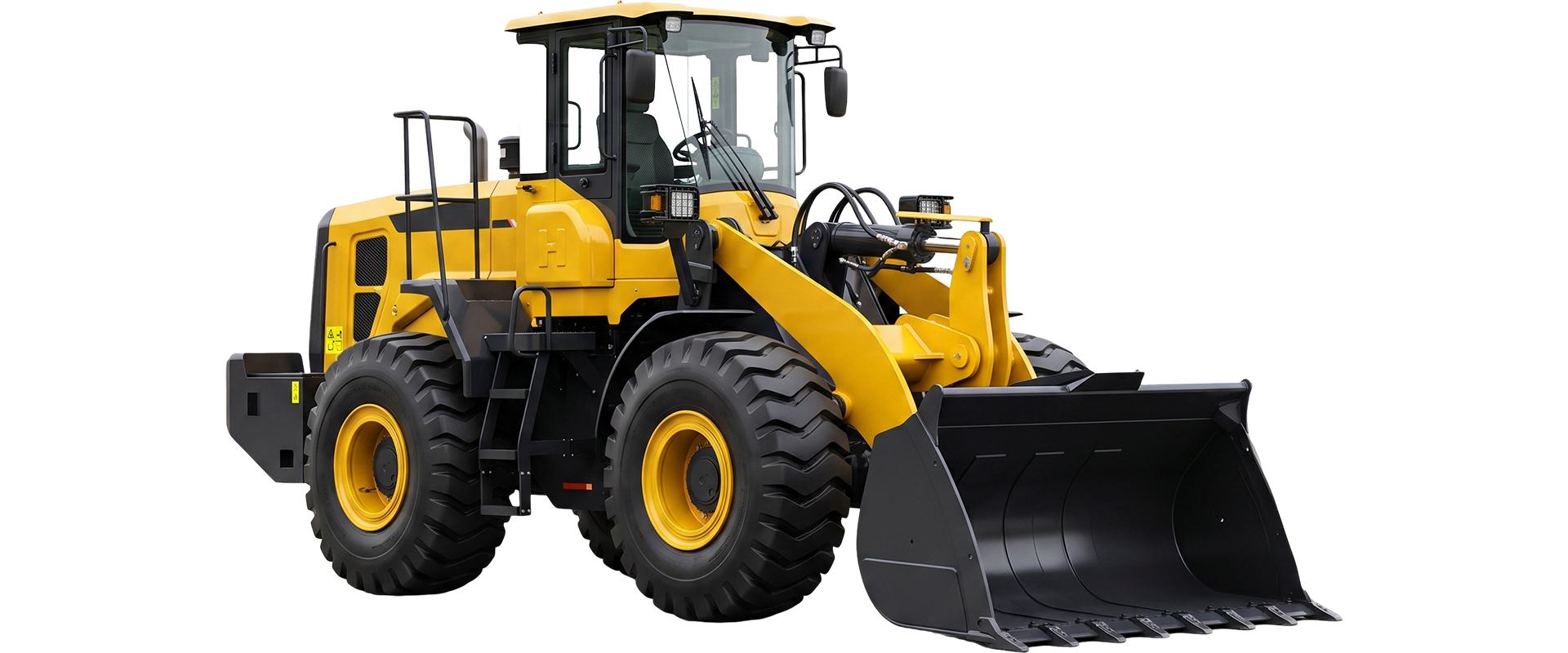

KL955B

KL955B

KL955B
5000kg
Rated Load
3
Bucket Capacity
3300mm
Max Dump Height
16700kg
Operating Weight

KL955B

1. The working device has been carefully optimized, demonstrating remarkable characteristics of strong digging force, high bucket filling rate, and excellent operational efficiency, providing powerful driving force for various engineering operations.
2. Systems of the machine are scientifically and reasonably matched to ensure high equipment operation reliability and significantly reduced failure rate, bringing users a durable and stable using experience.
3. Advanced waterproof and anti-corrosion electrical connectors are used, ensuring normal equipment operation even in harsh environments such as rainy weather, high corrosion, and heavy dust, allowing users to work worry-free.

No Image

Key Features

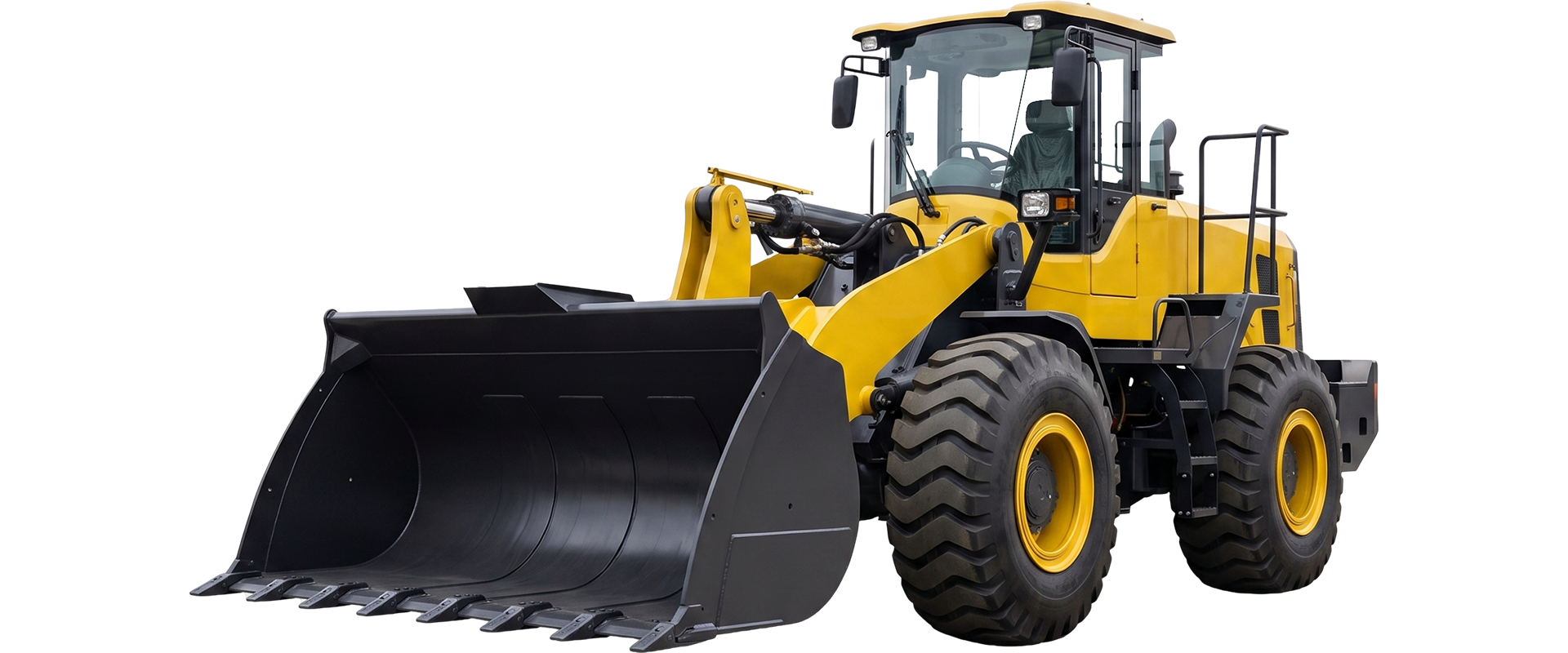

KL955B SIDE

Technical Data

5000kg
Rated Load
3
Bucket Capacity
3300mm
Max Dump Height
16700kg
Operating Weight
Wheelbase3000 mm
Rated Load5000 kg
Tire SpecGUGEER/23.5-25
Rated Power162 kW/220hp
Engine ModelWP6G125E23 Euro II
Bucket Capacity3 m³
Product ModelZL50MB
Breakout Force162 kN
Max Dump Height3300 mm
Operating Weight16700 kg
Overall Dimension7950×2980×3420 mm
Transmission ModelT180
Min Ground Clearance534 mm

Attachments
