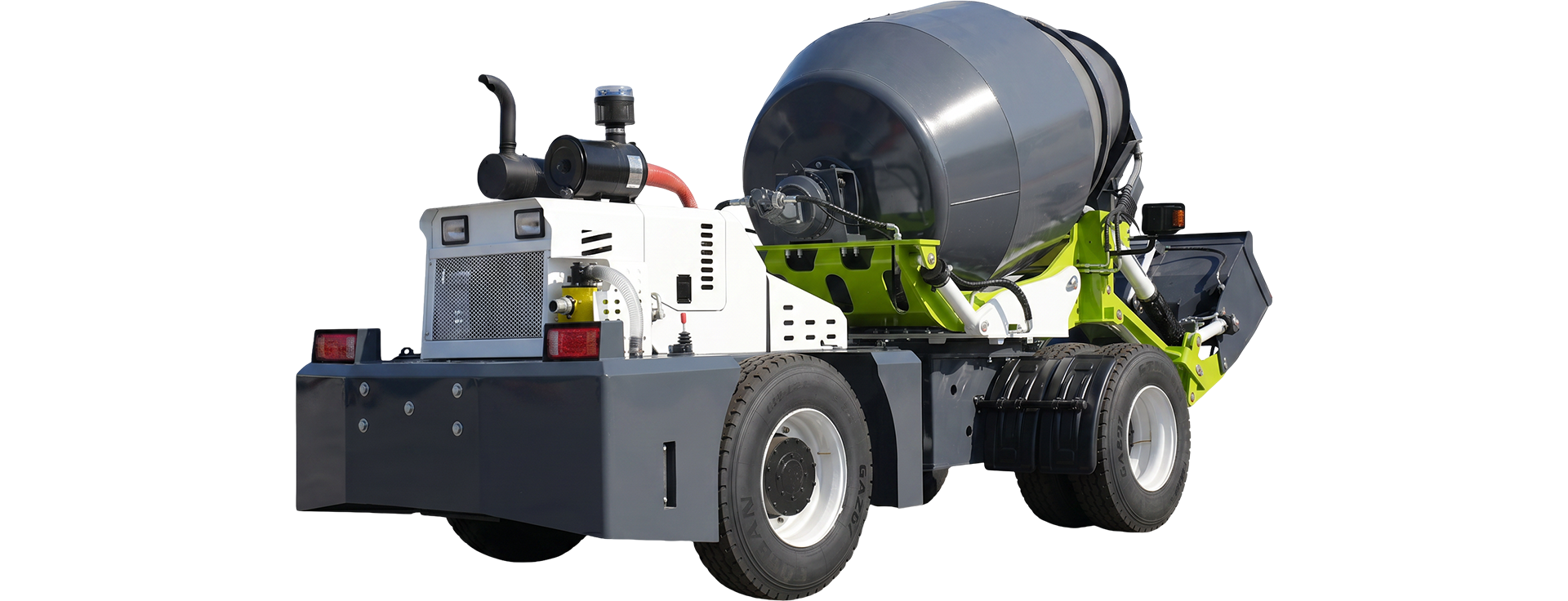

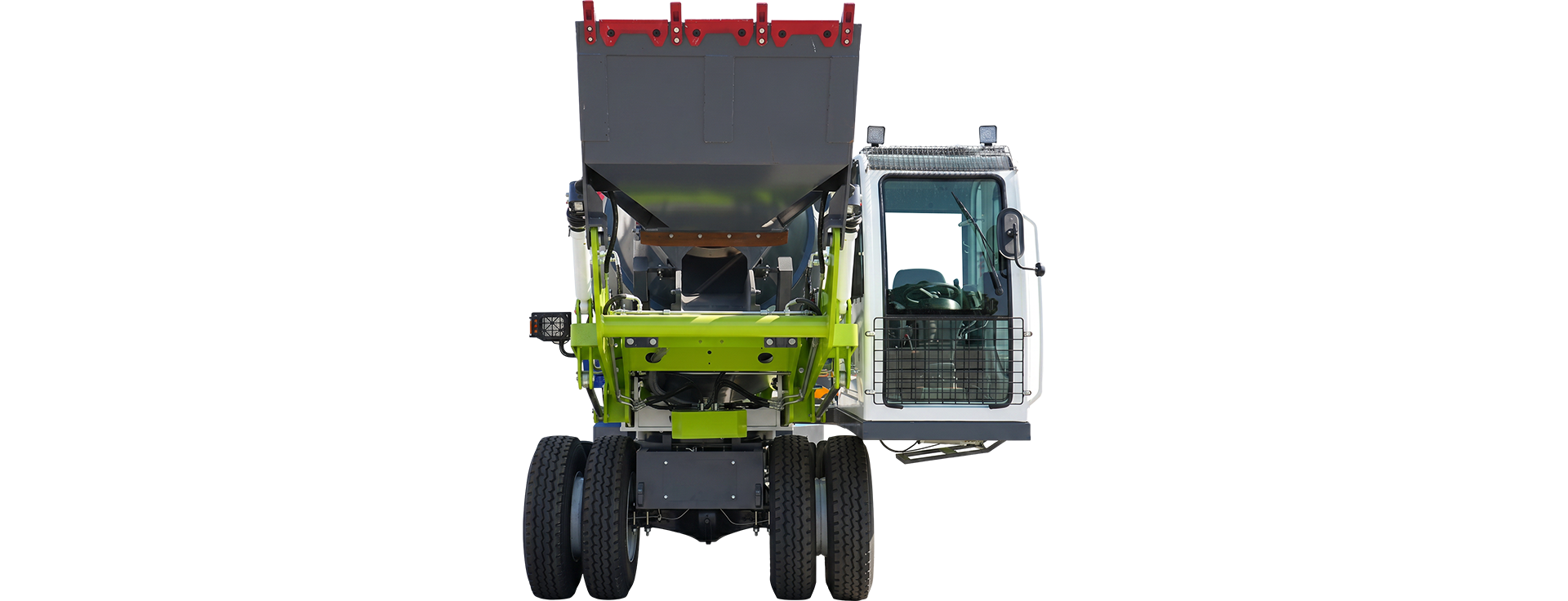

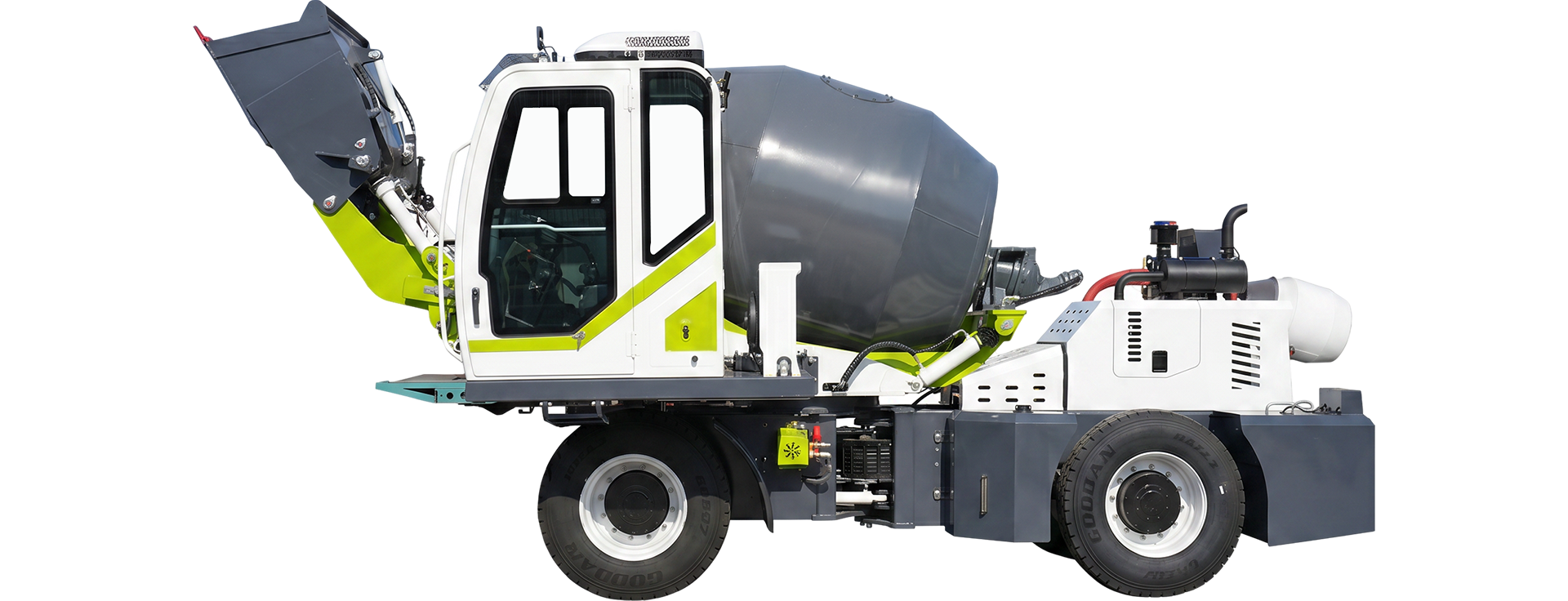

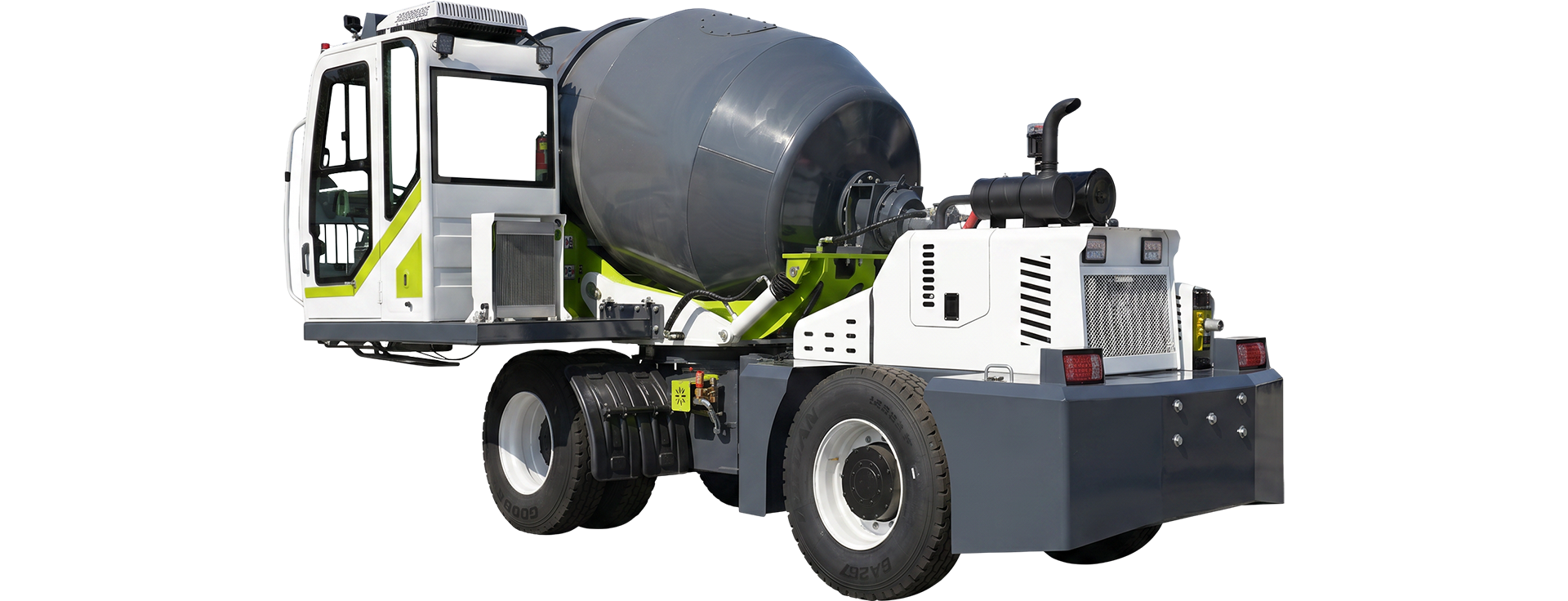

KS6000T

Name: KS6000T
Brand: KLIONCE

0.45m³

Bucket Capacity

No Image

Key Features

0.45m³

Bucket Capacity

Curb Weight7650 kg

Drum Capacity6.0 m³

Engine Power91 kW

Wheelbase2850 mm

Dimensions7300×2880×3100 mm

Drive ConfigTorque converter

Max Speed30 km/h

Gradeability30°

Min Turning Radius5300 mm

Min Ground Clearance380 mm

Tire16/70-R22.5 (Dual wheels, 6 tires)

Drive AxleStandard 30 final drive axle

Drum Rotation Speed≥17 r/min

Standard Discharge≥4.0 m³

Bucket Capacity0.45 m³

Water SupplyTime Relay

Tank Volume780 L

Engine ModelYuchai 4108 Turbocharged

Transmission Model300 Integrated

Gear Positions3 forward, 3 reverse

ReducerDomestic

Reduction Ratio1:28

Hydraulic PumpCBGQ2050/2050

Hydraulic MotorHenghai

Optional EquipmentElectronic Weighing System

Fuel Tank Capacity150 L

Hydraulic System Capacity150 L

Engine Oil Capacity18 L

360° Rotating Grapple

Forklift Forks with Upper Tines

Forks with Three Upper Tines

High-Dump Grain Bucket

Bucket

Snow Blower
