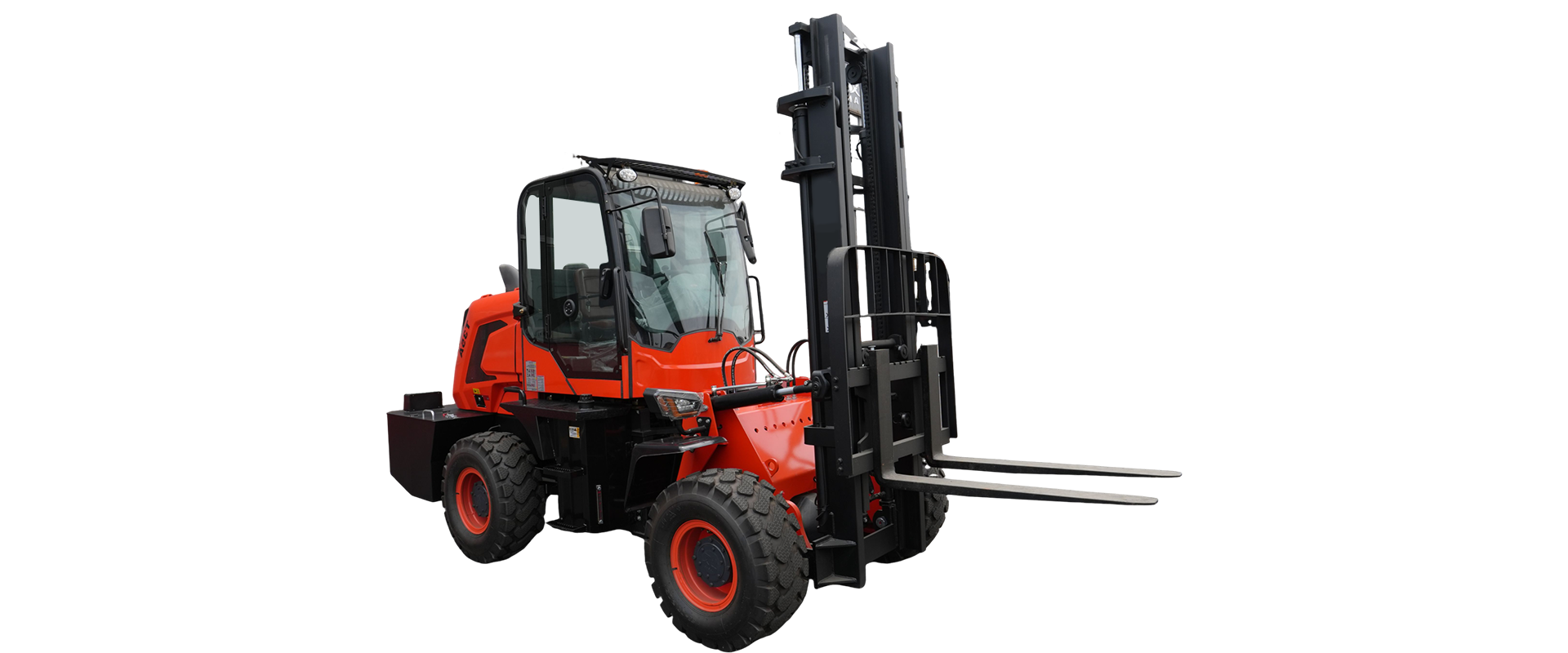

KF35S

KF35S

KF35S
3000kg
Rated Load
4200kg
Operating Weight

KF35S

1. Fully Enclosed Cab for Comfortable and Weather-Resistant Operation: The fully enclosed cab allows operation in various harsh environments, providing a clean and comfortable driving space.
2. Short Wheelbase Design for High Mobility and Accessibility: With a short wheelbase design, the compact machine size and small turning radius significantly enhance the forklift's maneuverability and accessibility.
3. Easy Maintenance Design to Reduce Costs and Improve Efficiency: The design and manufacturing process fully considers maintenance needs, reducing both time and costs for upkeep.
4. Reinforced Load-Bearing Structure for Impact Resistance and High Load Capacity: Key load-bearing structures are reinforced to ensure the machine's impact resistance and high-strength performance.

No Image

Key Features

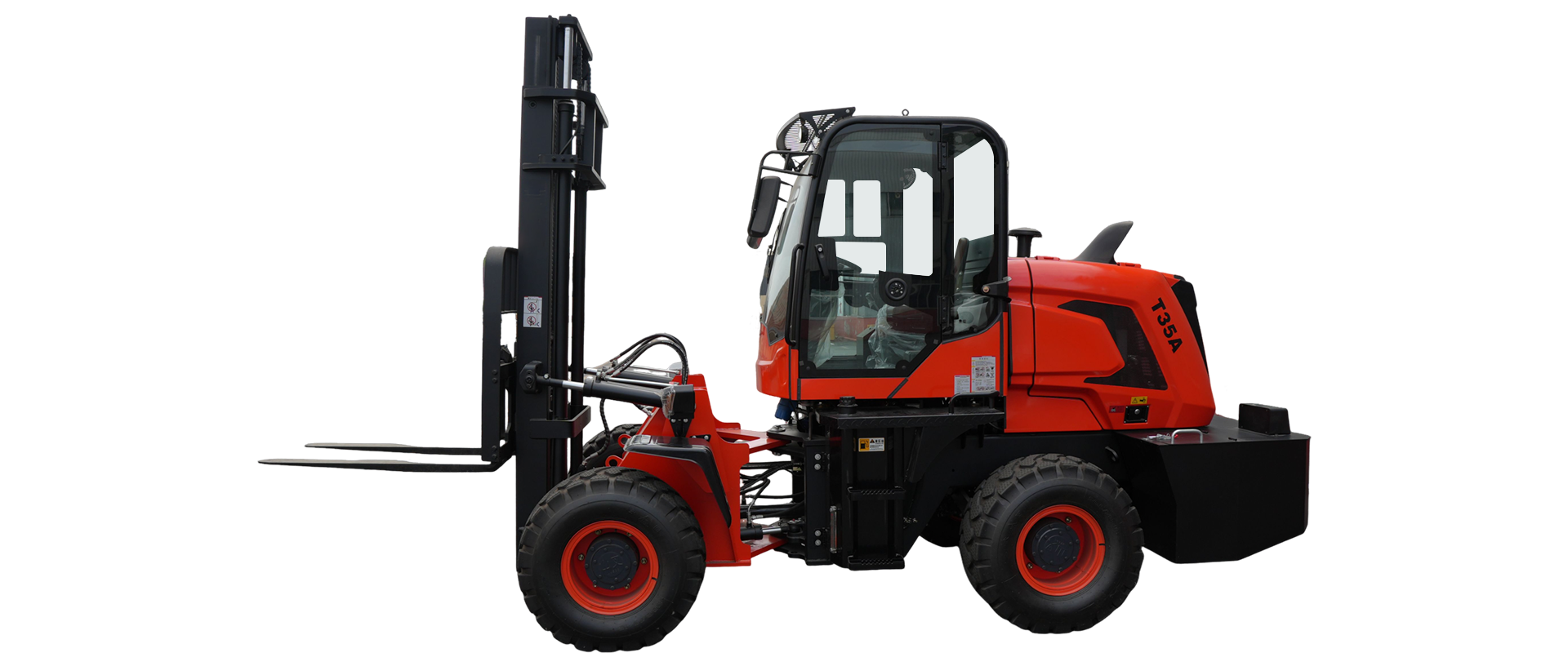

KF35S SIDE

Technical Data

3000kg
Rated Load
4200kg
Operating Weight
Rated Load3000 kg
Rated Lifting Height3000 mm
Engine Power36.8 kW
Operating Weight4200 kg
Load Center600 mm
Min Turning Radius3200 mm
Max Climbing Angle≤38°
Ground Clearance350 mm
Mast Tilt Angle10.0/8.0°
Max Travel Speed38 km/h
Max Traction Force30.0 KN
Engine ModelYunnei/Quanchai 493VP (36.8Kw) Tier II
Drive ModeFour-Wheel Drive
Wheelbase1890 mm
Mast Steel Width140 mm
Fork Length1200 mm
Overall Dimensions3800×1850×2300 mm
