KF50S

KF50S

KF50S
5000kg
Rated Load
6500kg
Operating Weight

KF50S

1. Fully Enclosed Cab, Suitable for Multiple Harsh Working Conditions: The fully enclosed cab design allows for ease of operation in various harsh working environments, creating a clean and comfortable driving experience for operators, ensuring both comfort and stability during operation.
2. Low-Profile Design, Suitable for Height-Restricted Scenarios: The overall machine height is ≤2.2 meters, featuring a low-profile and compact layout that enables flexible operation in restricted-height areas such as basements and underpasses, providing superior operational stability.
3. Easy-to-Maintain Design, Reducing Costs and Improving Efficiency: The entire design and manufacturing process takes maintenance needs into consideration, optimizing maintenance procedures to effectively reduce equipment maintenance time and lower long-term maintenance costs.
4. Self-Developed Hydraulic System, Outstanding Operational Performance: Equipped with a self-developed customized hydraulic system, the core components are precisely matched, offering faster lifting speeds, higher hydraulic transmission efficiency, and robust continuous operation capability, making it suitable for high-intensity operational demands.

No Image

Key Features

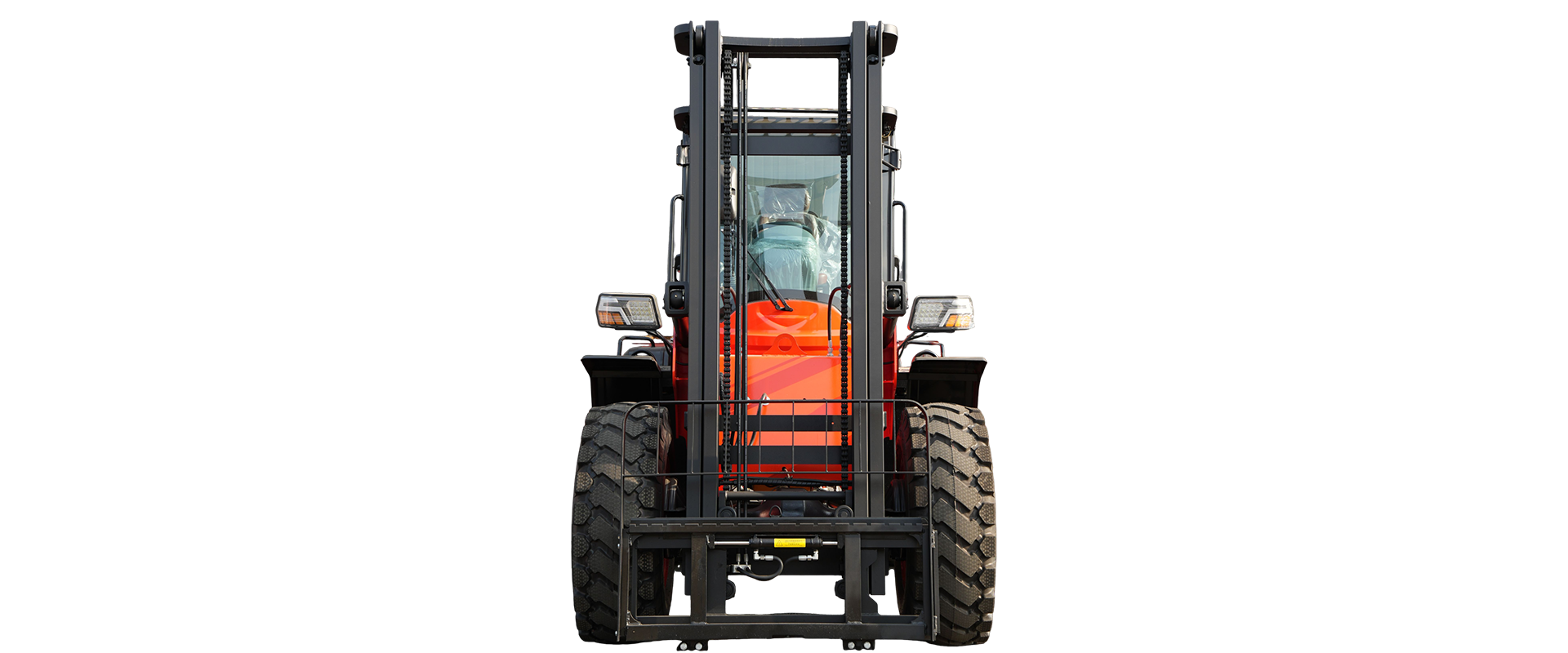

KF50S SIDE

Technical Data

5000kg
Rated Load
6500kg
Operating Weight
Rated Load5000 kg
Engine Power70 kW
Operating Weight6500 kg
Load Center600 mm
Min Turning Radius3200 mm
Max Climbing Angle≤38°
Ground Clearance350 mm
Mast Tilt Angle10.0/8.0°
Rated Lifting Height3000 mm
Max Travel Speed35 km/h
Max Traction Force30.0 KN
Engine ModelYunnei 4102 Turbo HP Common Rail(70Kw) Tier II
Drive ModeFour-Wheel Drive
Wheelbase1890 mm
Mast Steel Width180 mm (Heavy-Duty)
Fork Length1520 mm
Overall Dimensions3200×1850×2300 mm
