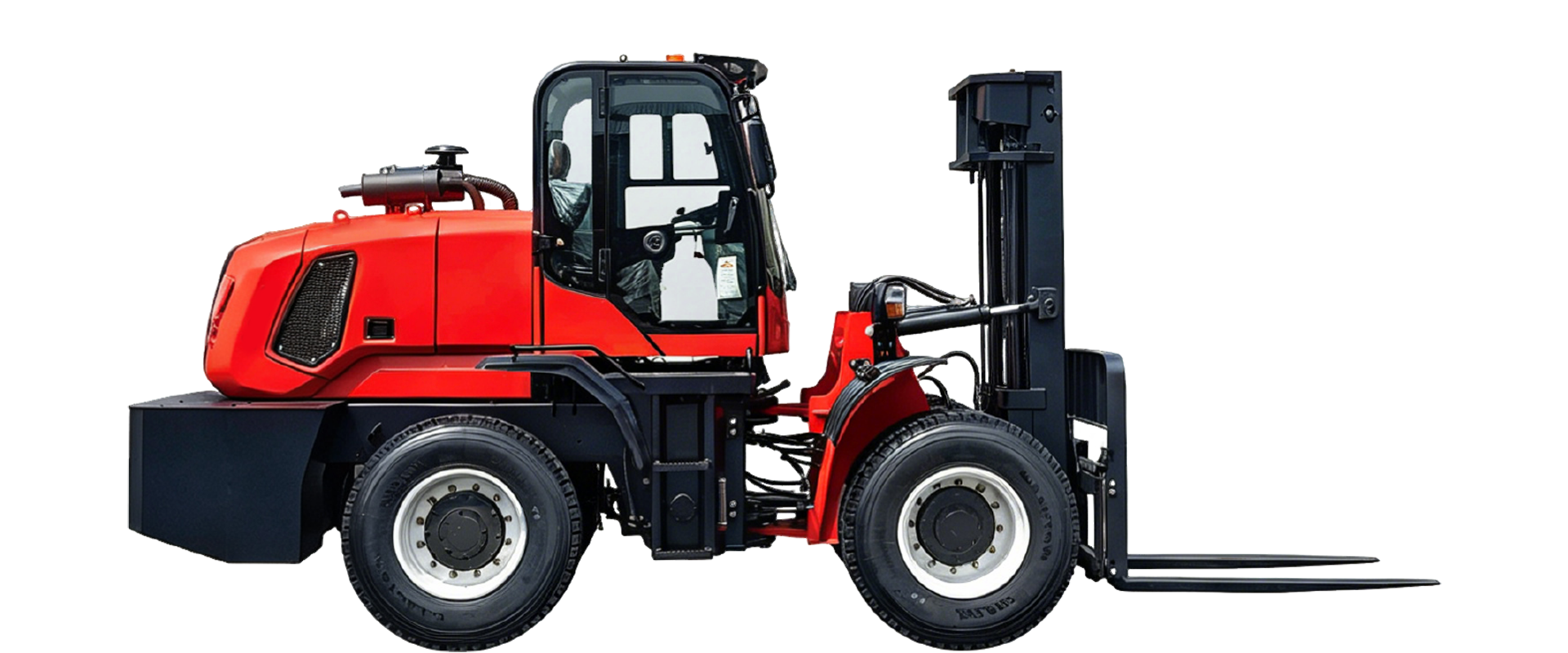

KF60S

KF60S

KF60S
6000kg
Rated Load
6500kg
Operating Weight

KF60S

1. Fully Enclosed Cab for Comfortable and Weather-Resistant Operation: The fully enclosed cab allows operation in various harsh environments, providing a clean and comfortable driving space.
2. Short Wheelbase Design for High Mobility and Accessibility: With a short wheelbase design, the compact machine size and small turning radius significantly enhance the forklift's maneuverability and accessibility.
3. Easy Maintenance Design to Reduce Costs and Improve Efficiency: The design and manufacturing process fully considers maintenance needs, reducing both time and costs for upkeep.
4. Reinforced Load-Bearing Structure for Impact Resistance and High Load Capacity: Key load-bearing structures are reinforced to ensure the machine's impact resistance and high-strength performance.

No Image

Key Features

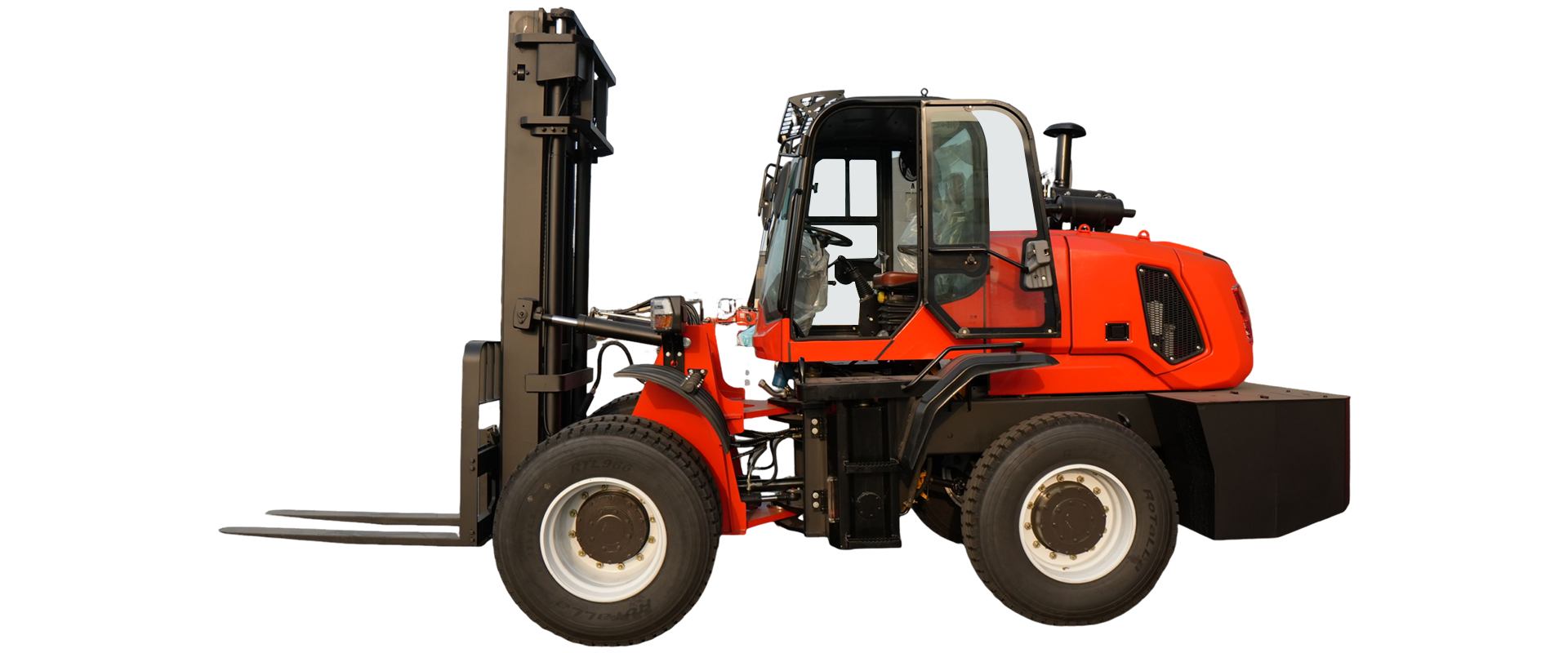

KF60S SIDE

Technical Data

6000kg
Rated Load
6500kg
Operating Weight
Rated Load6000 kg
Engine Power76 kW
Operating Weight6500 kg
Load Center600 mm
Rated Lifting Height4000 mm
Min Turning Radius4500 mm
Max Climbing Angle≤38°
Ground Clearance380 mm
Mast Tilt Angle10.0/8.0°
Max Travel Speed45 km/h
Max Traction Force35.0 KN
Engine ModelYunnei / Quanchai 4102 Turbocharged Engine, 76kW Tier II
Drive ModeFour-Wheel Drive
Wheelbase2400 mm
Mast Steel Width180 mm (Heavy-Duty)
Fork Length1520 mm
Overall Dimensions4600×2200×2850 mm
