KF932

KF932

KF932
4055kg
Operating Weight

KF932

1. Fully Enclosed Cab for Comfortable and Weather-Resistant Operation: The fully enclosed cab allows operation in various harsh environments, providing a clean and comfortable driving space.
2. Short Wheelbase Design for High Mobility and Accessibility: With a short wheelbase design, the compact machine size and small turning radius significantly enhance the forklift's maneuverability and accessibility.
3. Easy Maintenance Design to Reduce Costs and Improve Efficiency: The design and manufacturing process fully considers maintenance needs, reducing both time and costs for upkeep.
4. Reinforced Load-Bearing Structure for Impact Resistance and High Load Capacity: Key load-bearing structures are reinforced to ensure the machine's impact resistance and high-strength performance.

No Image

Key Features

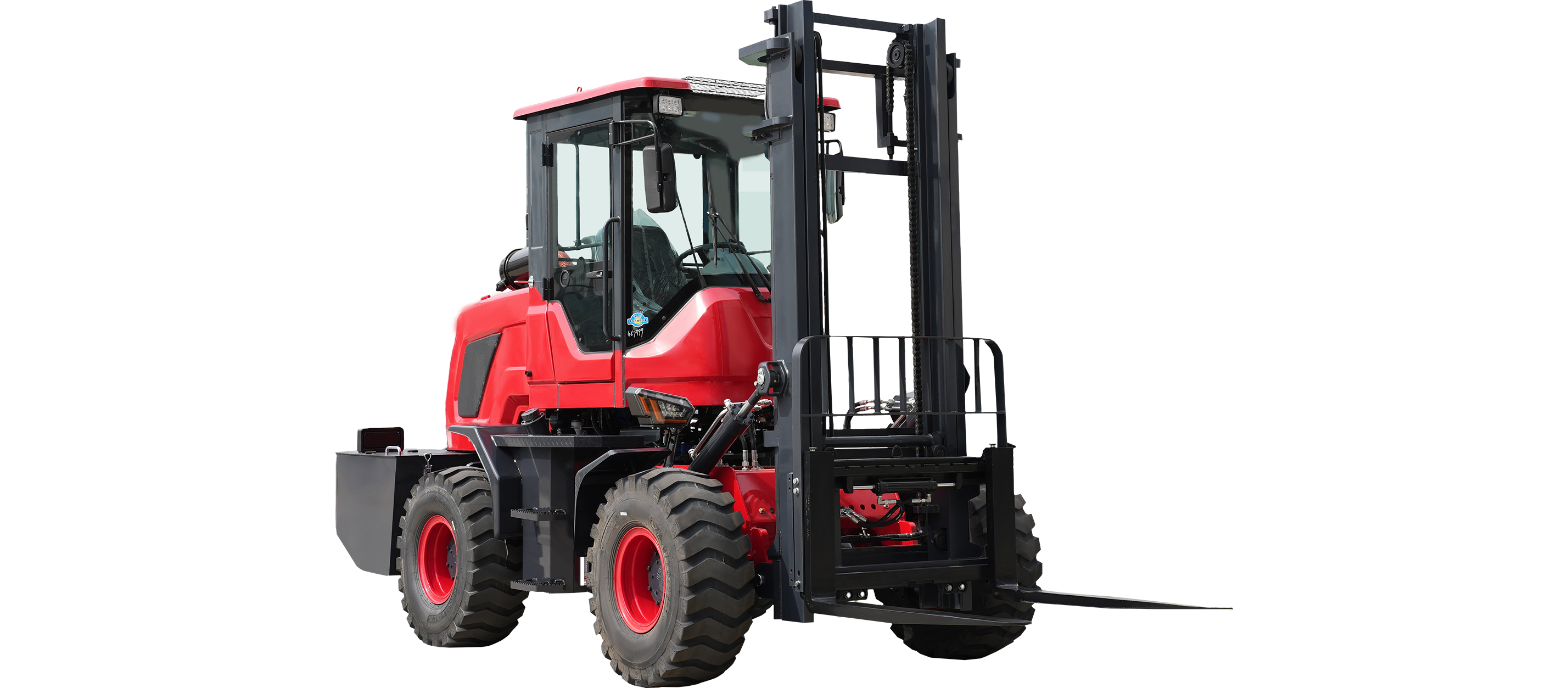

KF932 SIDE

Technical Data

4055kg
Operating Weight
Engine42KW
Max Speed26 km/h
Wheelbase1980 mm
Wheel Track1510 mm
Transmission265B
Mast Tilt Angle6/12 °
Operating Weight4055 kg
Counterweight TypeStandard counterweight
Fuel Tank Capacity60 L
Mast Closed Height2250 mm
Overall Dimensions5245*1860*2650 mm
Max Fork Lift Height3000 mm
Min Ground Clearance240 mm
Rated Lifting Capacity3000 kg
Hydraulic Tank Capacity60 L

Attachments
