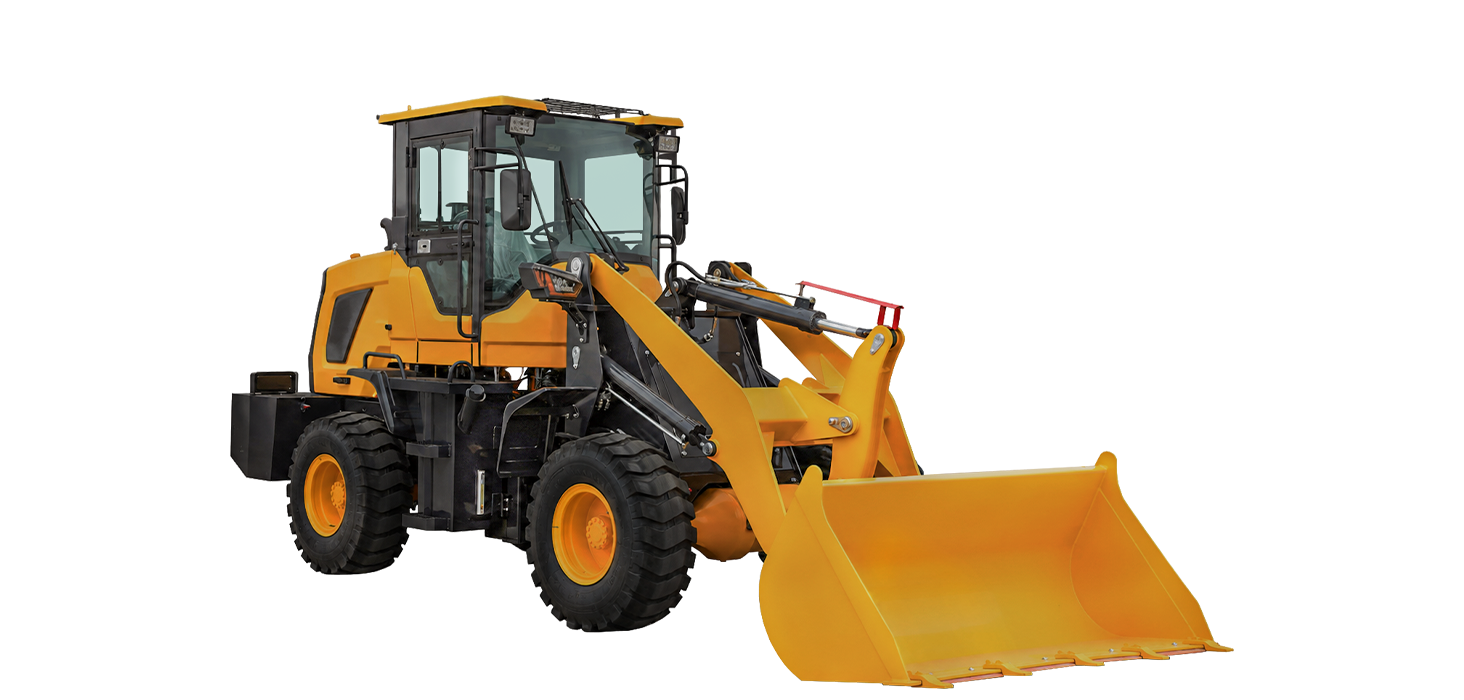

KL926B

KL926B

KL926B
1400kg
Rated Load
0.6
Bucket Capacity
3200mm
Dump Height
3340kg
Operating Weight

KL926B

1. Flexible Operation: Small turning radius, highly maneuverable, improved steering performance, and 17% faster steering speed.
2. Capable of meeting operation requirements in narrow spaces.
3. Robust Load Capacity: Features articulated front and rear frames with reinforced key stress areas, delivering excellent load capacity and long service life.
4. Comfortable Driving Experience: Enhanced cab sealing reduces interior noise by 7% compared to previous models.
5. Stronger Power: Lifting and digging force increased by 10%, providing more powerful performance.
6. Diverse Configurations: Multiple working attachments can be selected based on user needs and different working conditions.

No Image

Key Features

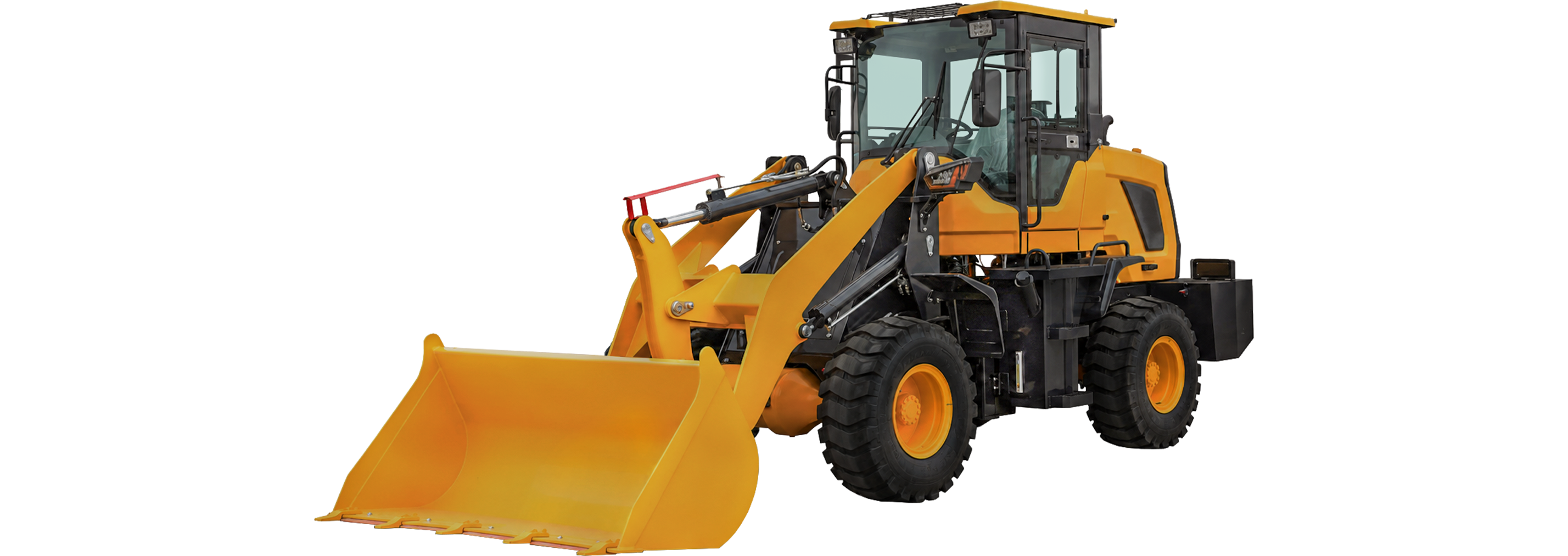

KL926B SIDE

Technical Data

1400kg
Rated Load
0.6
Bucket Capacity
3200mm
Dump Height
3340kg
Operating Weight
EngineYunnei 25GB 37kW
Dimension5555×1900×2750 mm
Max Speed30 km/h
Wheelbase2140 mm
Rated Load1400 kg
Dump Height3200 mm
Track Gauge1380 mm
Dump Distance820 mm
Steering Angle±35°
Turning Radius3200 mm
Bucket Capacity0.6 m³
Three Items Sum7.9 s
Operating Weight3340 kg
Fuel Tank Capacity65 L
Max Tractive Force≥19 KN
Min Ground Clearance230 mm
Hydraulic Oil Tank Capacity65 L

Attachments
