KL928F

KL928F

KL928F
1500kg
Rated Load
0.6
Bucket Capacity
3200mm
Dump Height
3375kg
Operating Weight

KL928F

1. Reliable and Durable: The pipeline layout has been optimized to prevent pipeline wear and tear, enhancing reliability and service life.
2. Leak-proof Sealing: Hydraulic pipelines adopt the international DIN standard 24° cone with double O-ring seals, providing superior sealing performance.
3. Excellent Performance: The hydraulic system uses single-pump and priority steering, resulting in low energy consumption and high efficiency. The transmission system has been rematched, with first and second gear speeds increased by 10%, faster field transfer, and higher work efficiency.
4. Comfortable and Safe: The fully sealed cab effectively reduces noise and dust, offers a wide field of vision, and provides high comfort.
5. Strong Load-bearing Capacity: The reinforced front and rear articulated frame increases overload capacity by 50% and torsional coefficient by 20%.

No Image

Key Features

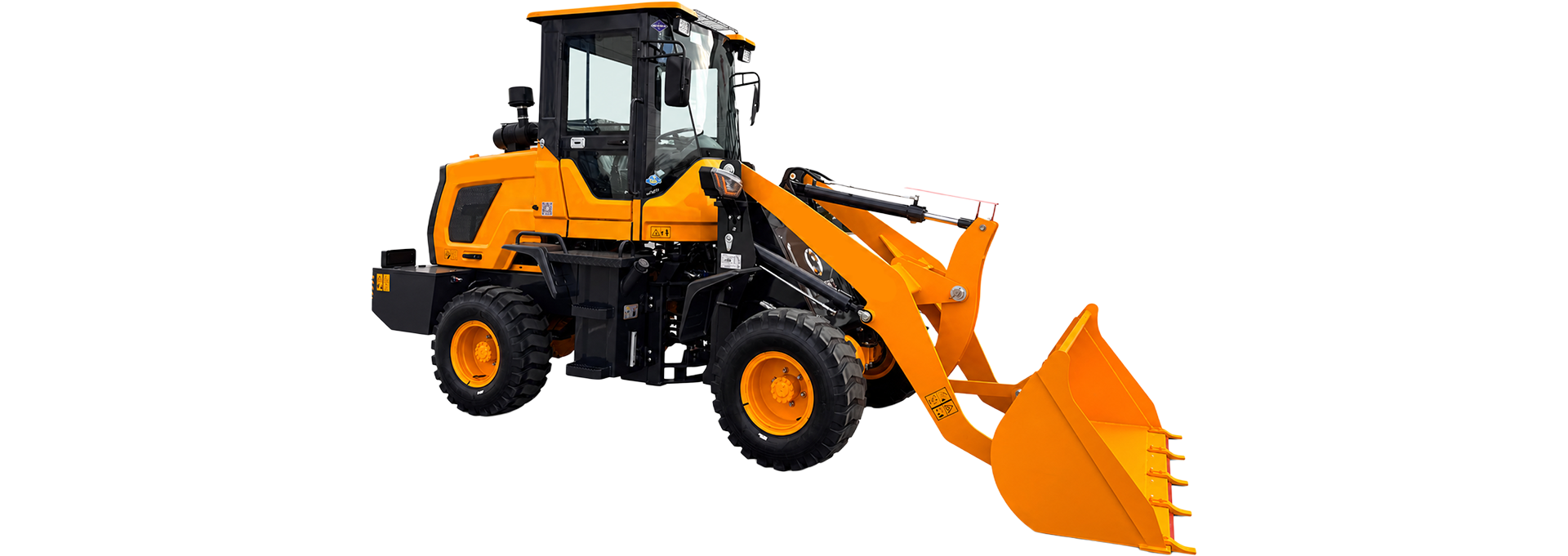

KL928F SIDE

Technical Data

1500kg
Rated Load
0.6
Bucket Capacity
3200mm
Dump Height
3375kg
Operating Weight
EngineYunwei 25GB 37kW
Dimension5570×1910×2780 mm
Max Speed32 km/h
Wheelbase2200 mm
Rated Load1500 kg
Dump Height3200 mm
Track Gauge1380 mm
Dump Distance750 mm
Steering Angle±35°
Turning Radius3200 mm
Bucket Capacity0.6 m³
Three Items Sum10 s
Operating Weight3375 kg
Fuel Tank Capacity75 L
Max Tractive Force≥19 KN
Min Ground Clearance200 mm
Hydraulic Oil Tank Capacity75 L
