KL932

KL932

KL932
1500kg
Rated Load
0.6
Bucket Capacity
3200mm
Dump Height
3720kg
Operating Weight

KL932

1. Reliable Performance: Reinforced drive axle and four-wheel drive ensure strong traction, reasonable axle load distribution, and safe braking, resulting in excellent vehicle stability.
2. Superior Hydraulics: Well-sealed pipelines and self-developed hydraulic system deliver high efficiency.
3. Stable Transmission: Fixed-axle transmission provides high transmission efficiency and low maintenance costs.
4. Easy Operation: Power shifting, flexible cable, and full hydraulic steering make operation effortless and maintenance convenient.
5. Diverse Attachments: Offers a variety of working attachments and buckets for selection, meeting different user requirements. The working attachments with high-position automatic leveling capability further expand the loader's application range and working capacity.

No Image

Key Features

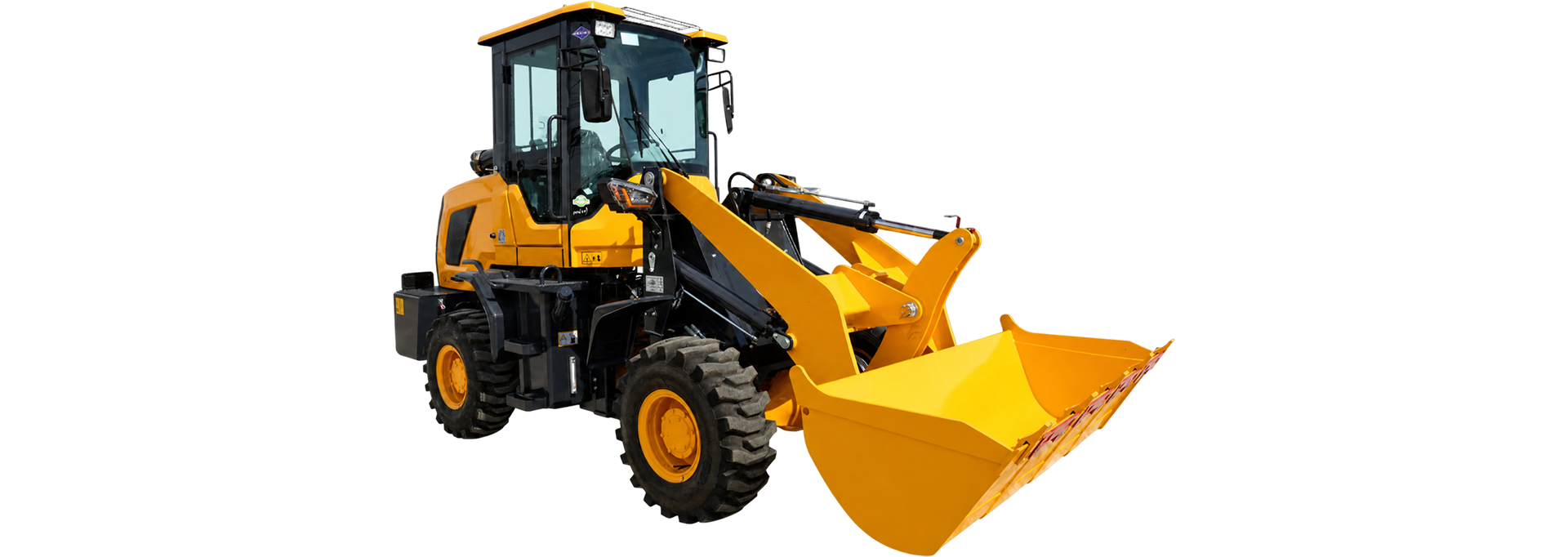

KL932 SIDE

Technical Data

1500kg
Rated Load
0.6
Bucket Capacity
3200mm
Dump Height
3720kg
Operating Weight
EngineYunnei (RB2619) 37kW
Dimension5615×1900×2790 mm
Max Speed32 km/h
Wheelbase2200 mm
Rated Load1500 kg
Dump Height3200 mm
Track Gauge1495 mm
Dump Distance740 mm
Steering Angle±35°
Turning Radius3350 mm
Bucket Capacity0.6 m³
Three Items Sum9.7 s
Operating Weight3720 kg
Fuel Tank Capacity75 L
Max Tractive Force19-39KN (By Engine Power)
Min Ground Clearance220 mm
Hydraulic Oil Tank Capacity75 L
