KL952

KL952

KL952
3350kg
Rated Load
2.3
Bucket Capacity
4500mm
Dump Height
6705kg
Operating Weight

KL952

1. High cargo handling efficiency: the 3-ton load loader can handle more cargo at one time. Compared with the small loader, the KL958 small wheel loader can complete the loading and unloading task more quickly. This improves the efficiency of cargo handling and shortens loading and unloading time.

2. Flexibility to adapt to different goods: Warehousing logistics usually design a variety of types, shapes and sizes of goods. The 3-ton loaders are more flexible in handling different types of cargo.

3. Adapt to small working space: the working space in warehouses and logistics is relatively small, requiring flexible operation of mechanical equipment. The 3-ton loaders are relatively small in size and can be freely turned and operated in a limited space.

No Image

Key Features

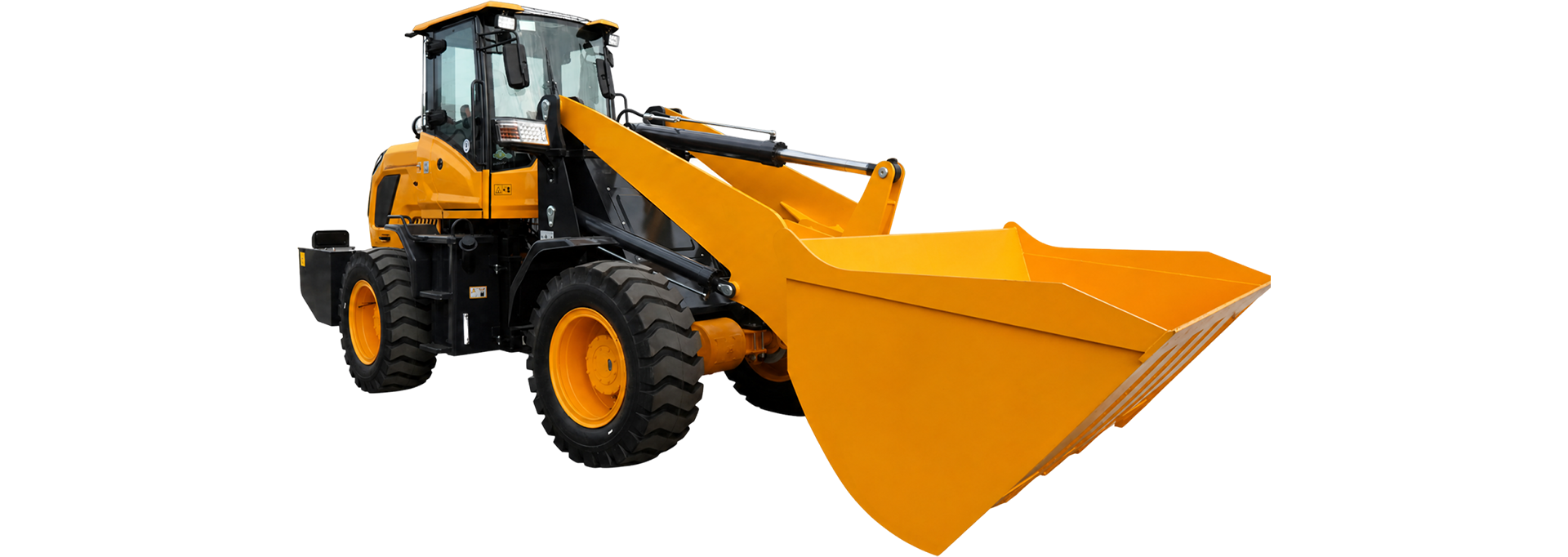

KL952 SIDE

Technical Data

3350kg
Rated Load
2.3
Bucket Capacity
4500mm
Dump Height
6705kg
Operating Weight
EngineYunnei 48 Turbo 92KW (Export version)
Dimension8025×2480×2960 mm
Max Speed40 km/h
Wheelbase2710 mm
Rated Load3350 kg
Dump Height4500 mm
Track Gauge1570 mm
Dump Distance1330 mm
Steering Angle≥35°
Turning Radius3600 mm
Bucket Capacity2.3 m³
Three Items Sum10 s
Operating Weight6705 kg
Fuel Tank Capacity85 L
Max Breakout Force≥47 KN
Max Tractive Force≥42 KN
Min Ground Clearance330 mm
Hydraulic Oil Tank Capacity85 L
