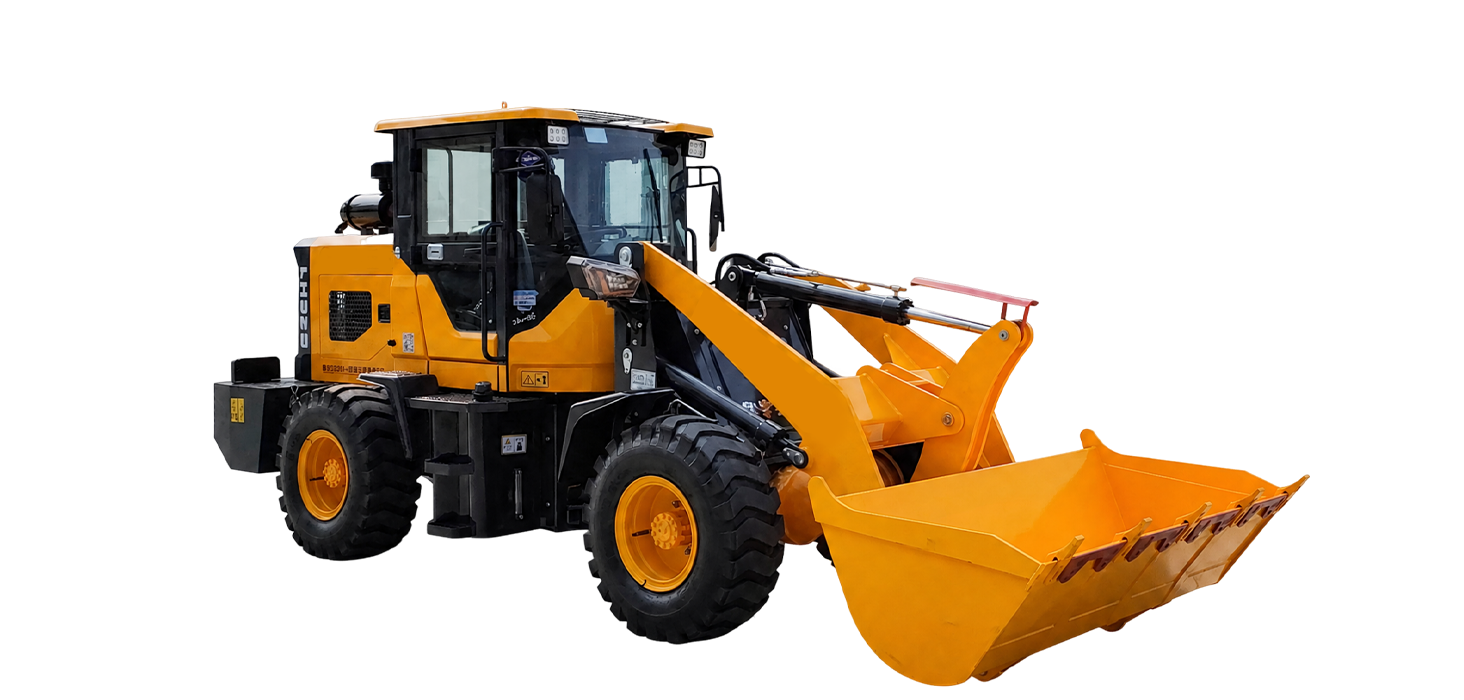

KL928HC

KL928HC

KL928HC
1200kg
Rated Load
0.45
Bucket Capacity
3000mm
Dump Height
3580kg
Operating Weight

KL928HC

1. Power system: Equipped with well-known brand engines, powerful, efficient, and fuel-efficient, with low maintenance costs;
2. Transmission system: Mechanical gearbox with stable quality, good performance, and high work efficiency;
3. Hydraulic system: Open hydraulic system, equipped with well-known branded gear pumps, multi way valves, connectors, and hydraulic oil pipes.The main hydraulic components are made of well-known brands, with reliable performance;
4. Strong Structural: Strong load-bearing capacity and are suitable for various working conditions; laser cutting, CNC machining, and robot welding, ensuring reliable and stable quality;

No Image

Key Features

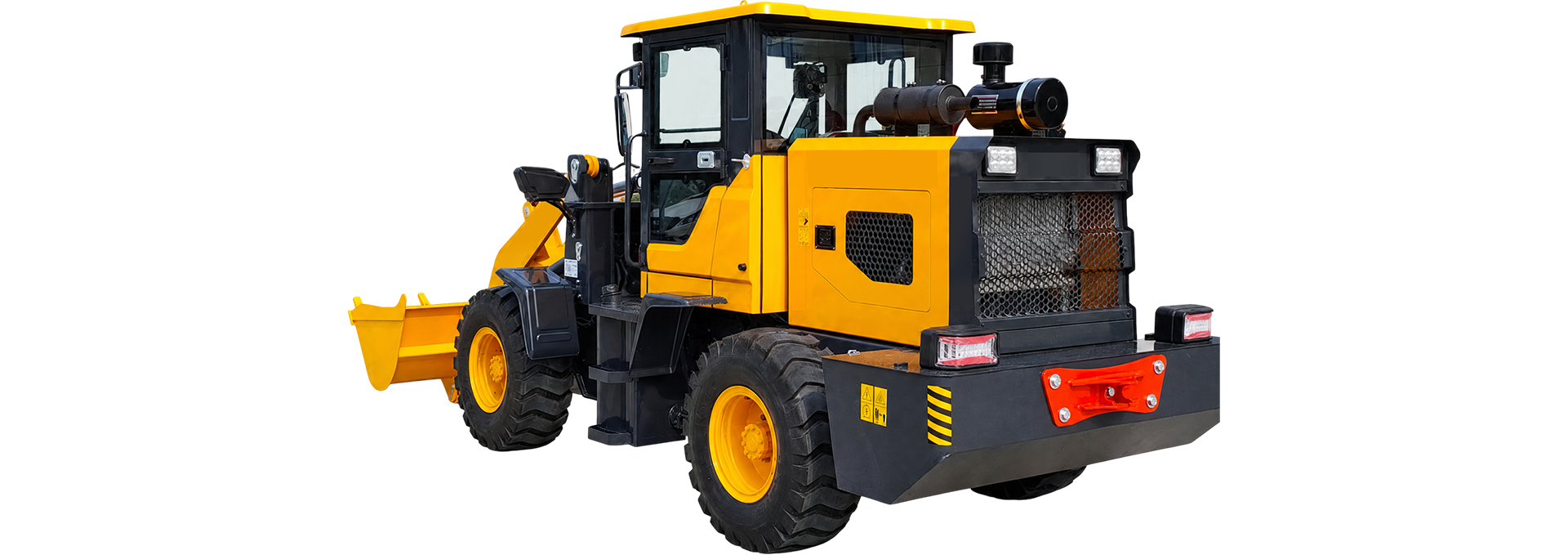

KL928HC SIDE

Technical Data

1200kg
Rated Load
0.45
Bucket Capacity
3000mm
Dump Height
3580kg
Operating Weight
Engine25GB 37kw
Max Speed28 km/h
Wheelbase2310 mm
Rated Load1200 kg
Dump Height3000 mm
Wheel Track1490 mm
Steering Angle≥35 °
Three Item Sum10 s
Turning Radius3440 mm
Bucket Capacity0.45 m³
最大爬起力≥27 KN
Dumping Distance850 mm
Operating Weight3580 kg
Fuel Tank Capacity45 L
Max Tractive Force≥19 KN
Overall Dimensions5700*1900*2200 mm
Min Ground Clearance220 mm
Hydraulic Tank Capacity45 L
