KL919FDL

KL919FDL

KL919FDL
1000kg
Rated Load
0.3
Bucket Capacity
2600mm
Dump Height
2640kg
Operating Weight

KL919FDL

1.Lightweight and highly flexible design,Key components made of reinforced steel for extra-long corrosion- resistant life,Strengthened frame and bucket for easy handling of high-intensity work,Durable and long-lasting for ultimate peace of mind.
2.Four-wheel drive configuration for powerful performance,Smooth operation on complex terrains,Power shift transmission for easy operation and faster work,Significant efficiency improvement.
Low purchase cost and investment,Daily fuel consumption savings,Undoubtedly the cost-effective choice.
3.Specially tailored for small-scale operations, it replaces manual handling with ease and is suitable for fields such as animal husbandry, agricultural operations, warehousing and logistics.

No Image

Key Features

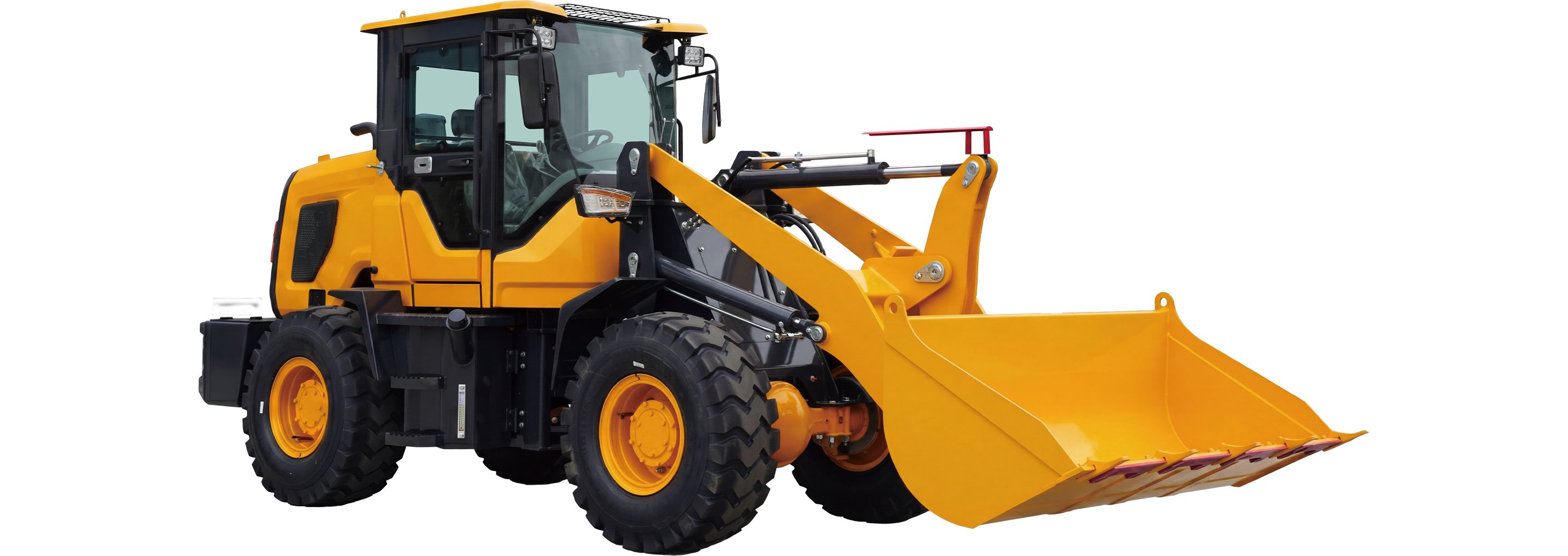

KL919FDL SIDE

Technical Data

1000kg
Rated Load
0.3
Bucket Capacity
2600mm
Dump Height
2640kg
Operating Weight
EngineHuichai490 42kw
Dimension5010×1540×2150 mm
Max Speed25 km/h
Wheelbase2045 mm
Rated Load1000 kg
Dump Height2600 mm
Track Gauge1485 mm
Dump Distance770 mm
Steering Angle≥35°
Turning Radius2800 mm
Bucket Capacity0.3 m³
Three Items Sum10 s
Operating Weight2640 kg
Fuel Tank Capacity35 L
Max Tractive Force≥19 KN
Min Ground Clearance175 mm
Hydraulic Oil Tank Capacity35 L

Attachments
