KL938

KL938

KL938
1700kg
Rated Load
0.75
Bucket Capacity
3200mm
Dump Height
4080kg
Operating Weight

KL938

1. Featuring high-efficiency operation capabilities and flexible adaptability, it can meet various loose material handling requirements in construction sites, farmland irrigation, material transportation, and cargo stacking.
2. Equipped with a high-efficiency engine, it provides strong power and high torque output, capable of adapting to multiple working conditions and complex terrains.
The full hydraulic control system ensures flexible and precise operation, high stability, reduced operation difficulty, and facilitates long-time operation.
3. Optimized through ergonomic design, the cab offers a wide field of vision and comfortable operating space, effectively reducing driving fatigue.
4. Adopting modular design, key components are easy to disassemble and inspect, reducing downtime and maintenance costs.

No Image

Key Features

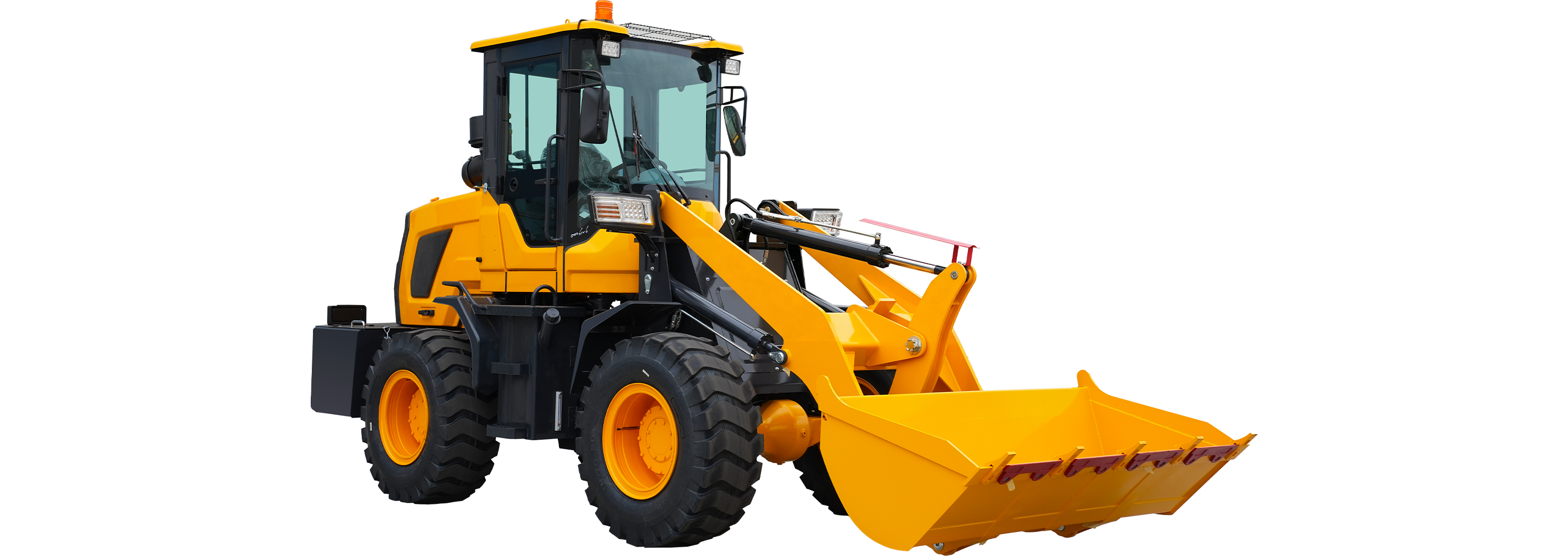

KL938 SIDE

Technical Data

1700kg
Rated Load
0.75
Bucket Capacity
3200mm
Dump Height
4080kg
Operating Weight
EngineYunnei 27GBZ 58kW
Dimension5715×1900×2850 mm
Max Speed33 km/h
Wheelbase2200 mm
Rated Load1700 kg
Dump Height3200 mm
Track Gauge1560 mm
Dump Distance740 mm
Steering Angle±35°
Turning Radius3350 mm
Bucket Capacity0.75 m³
Three Items Sum10.18 s
Operating Weight4080 kg
Fuel Tank Capacity75 L
Max Tractive Force30-39KN (By Engine Power)
Min Ground Clearance310 mm
Hydraulic Oil Tank Capacity75 L
