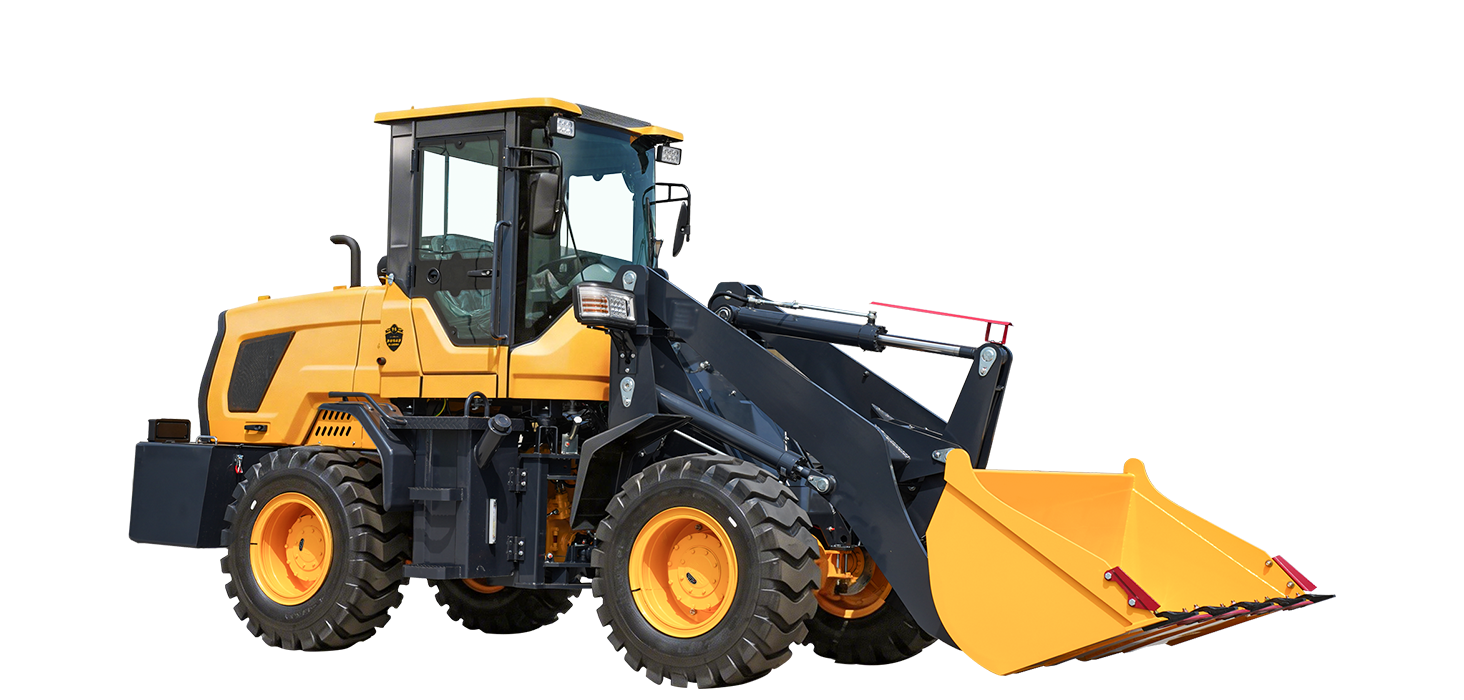

KL939

KL939

KL939
2000kg
Rated Load
0.85
Bucket Capacity
3500mm
Dump Height
4830kg
Operating Weight

KL939

1. The hydraulic steering and articulated frame provide excellent maneuverability with a small turning radius, allowing easy access and operation in narrow spaces, adaptable to various complex working conditions.
2. With powerful and fuel-efficient engines, it delivers consistent power output even in challenging conditions, ensuring efficient operation.
3. The comfortable cab offers good visibility, and the adjustable luxury seat makes operation more convenient, natural, and accurate, effectively reducing operator fatigue. Single-lever control is simple, reliable, and easy to maintain.
4. Thanks to its outstanding performance and stability, it performs well in various working conditions including construction sites, farmland irrigation, material handling, and cargo stacking, demonstrating strong adaptability.

No Image

Key Features

Technical Data

2000kg
Rated Load
0.85
Bucket Capacity
3500mm
Dump Height
4830kg
Operating Weight
EngineHuafeng 4102 Turbo 76kW
Dimension6285×1965×2910 mm
Max Speed33 km/h
Wheelbase2430 mm
Rated Load2000 kg
Dump Height3500 mm
Track Gauge1570 mm
Dump Distance1560 mm
Steering Angle≥35°
Turning Radius3400 mm
Bucket Capacity0.85 m³
Three Items Sum10.875 s
Operating Weight4830 kg
Fuel Tank Capacity75 L
Max Tractive Force39 KN
Min Ground Clearance325 mm
Hydraulic Oil Tank Capacity75 L
