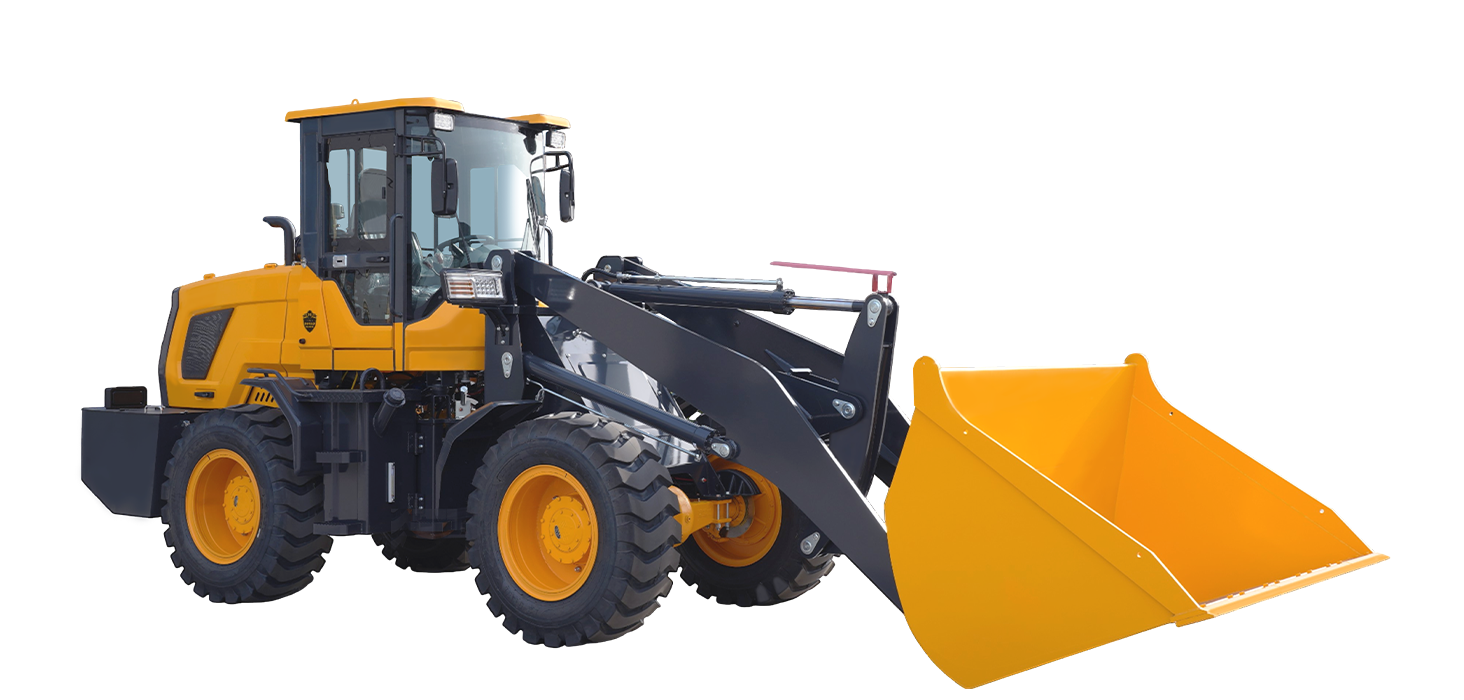

KL939L

KL939L

KL939L
2000kg
Rated Load
1.55
Bucket Capacity
4200mm
Dump Height
5250kg
Operating Weight

KL939L

1. This model features elevated arms specifically designed for grain handling, effectively increasing unloading height and reducing material spillage. It perfectly meets the needs of grain storage stacking and truck loading operations.
2. The load-sensing coaxial flow amplification steering system ensures lightweight and flexible operation, with a steering angle of 40°, helping to improve work efficiency.
3. With optimized heat dissipation and noise reduction design, it can operate continuously in high-temperature environments while enhancing driving comfort.
4. Supports various optional work attachments, further expanding its utility.
5. Equipped with reinforced heavy-duty drive axles, it offers high load capacity and reliable performance, suitable for various harsh working conditions.

No Image

Key Features

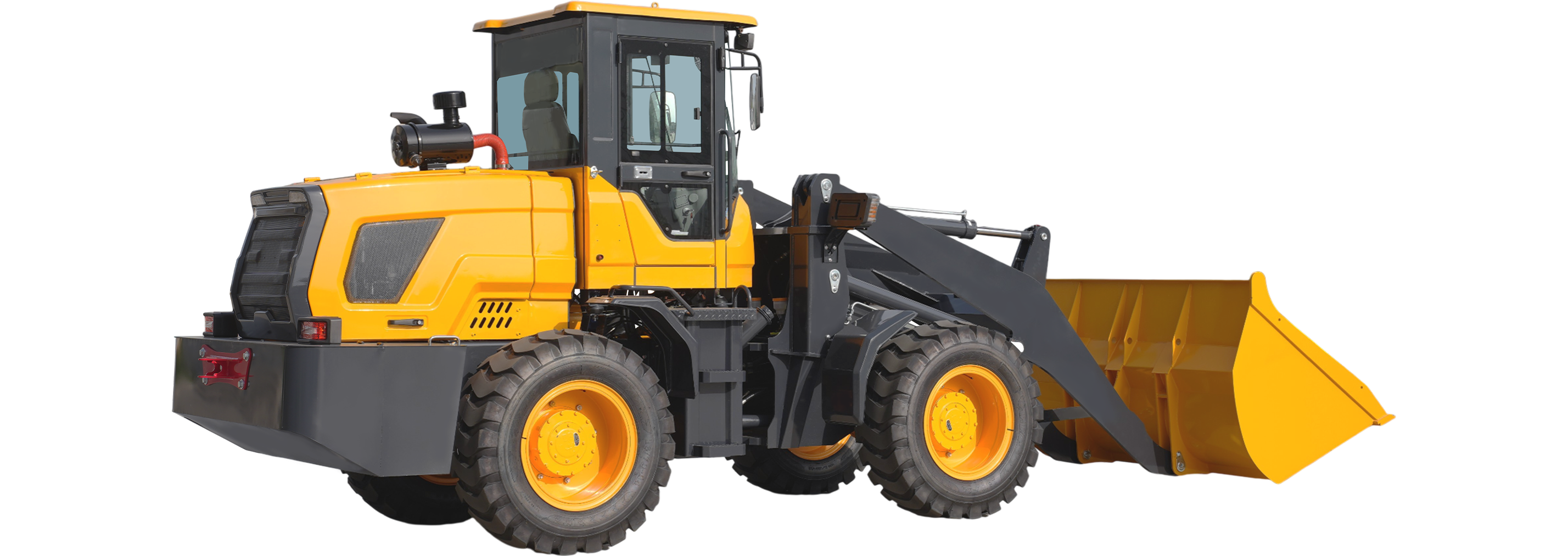

KL939L SIDE

Technical Data

2000kg
Rated Load
1.55
Bucket Capacity
4200mm
Dump Height
5250kg
Operating Weight
EngineHuafeng 4102 Turbo 76kW
Dimension7495×2260×2895 mm
Max Speed32 km/h
Wheelbase2430 mm
Rated Load2000 kg
Dump Height4200 mm
Track Gauge1560 mm
Dump Distance1290 mm
Steering Angle±35°
Turning Radius3600 mm
Bucket Capacity1.55 m³
Three Items Sum11 s
Operating Weight5250 kg
Fuel Tank Capacity75 L
Max Tractive Force39 KN
Min Ground Clearance325 mm
Hydraulic Oil Tank Capacity75 L
