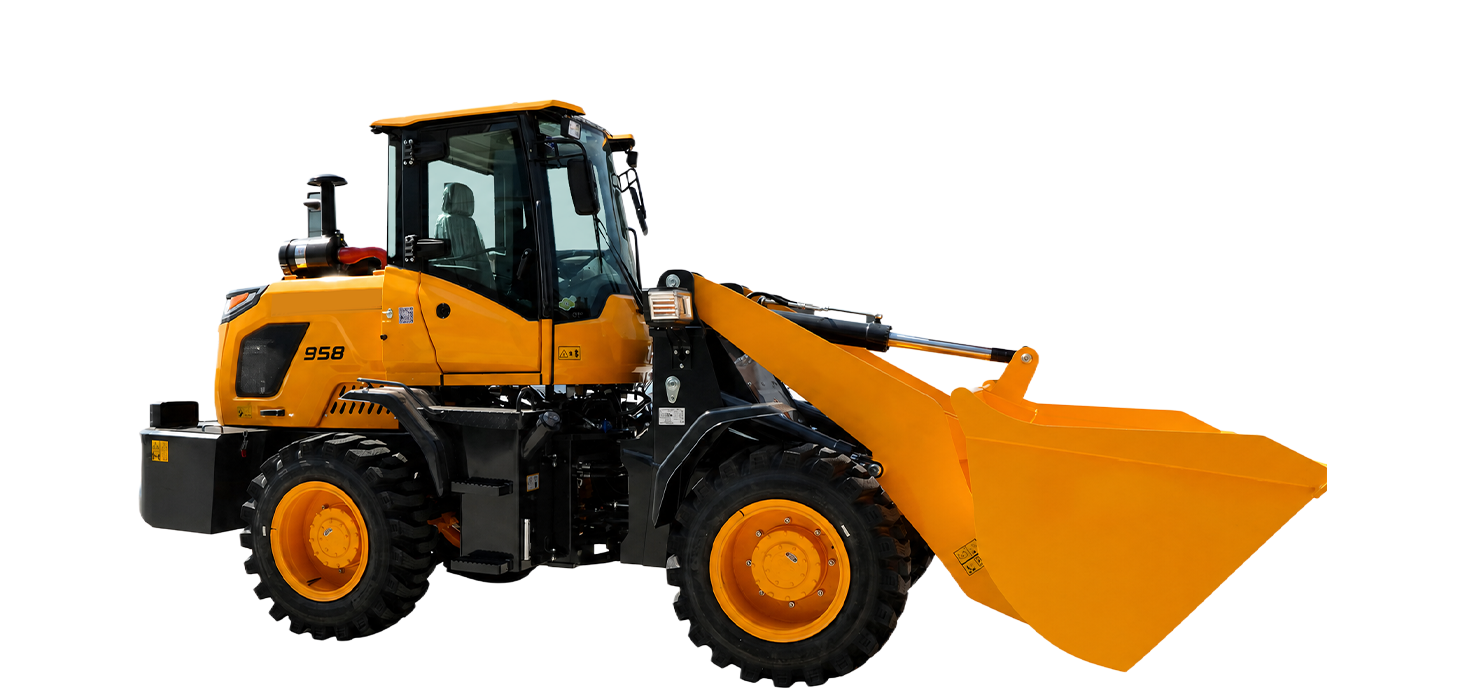

KL949H

KL949H

KL949H
2800kg
Rated Load
1.1
Bucket Capacity
3500mm
Dump Height
6110kg
Operating Weight

KL949H

1. The optimized operating valve lever requires minimal effort and offers flexible operation, ensuring precise and effortless control with every movement, greatly enhancing the operating experience.
2. The optimized working device features exceptional digging power, high bucket filling rate, and high operational efficiency, providing solid guarantee for efficient work.
3. The large maintenance space design makes daily maintenance convenient and quick, saving time and energy.
4. Widely suitable for various working scenarios including mines, ports, sand and gravel yards, coal yards, steel mills, etc.; especially performs outstandingly in heavy-duty conditions such as loading, transporting, unloading, and leveling in large ports and coal mines.

No Image

Key Features

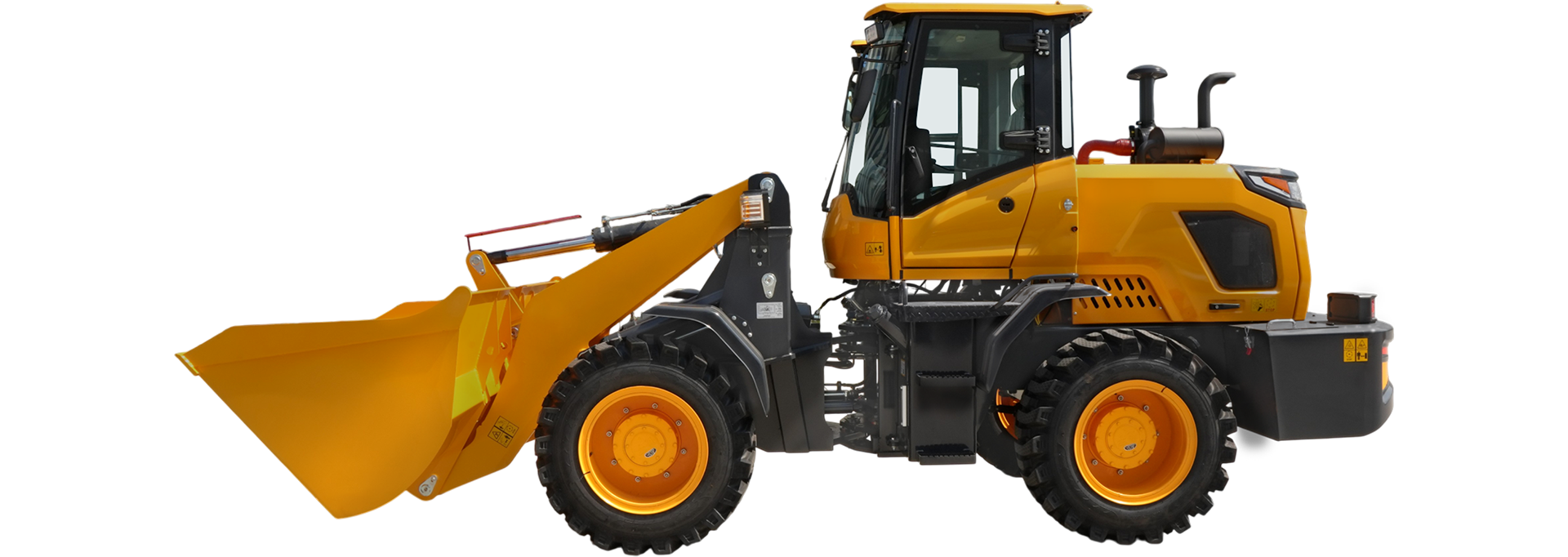

KL949H SIDE

Technical Data

2800kg
Rated Load
1.1
Bucket Capacity
3500mm
Dump Height
6110kg
Operating Weight
EngineYunwei 38 Turbo 76kW
Dimension6595×2230×2985 mm
Max Speed36 km/h
Wheelbase2590 mm
Rated Load2800 kg
Dump Height3500 mm
Track Gauge1670 mm
Dump Distance930 mm
Steering Angle±35°
Turning Radius3600 mm
Bucket Capacity1.1 m³
Three Items Sum10.12 s
Operating Weight6110 kg
Fuel Tank Capacity95 L
Max Tractive Force≥42 KN
Min Ground Clearance370 mm
Hydraulic Oil Tank Capacity95 L
