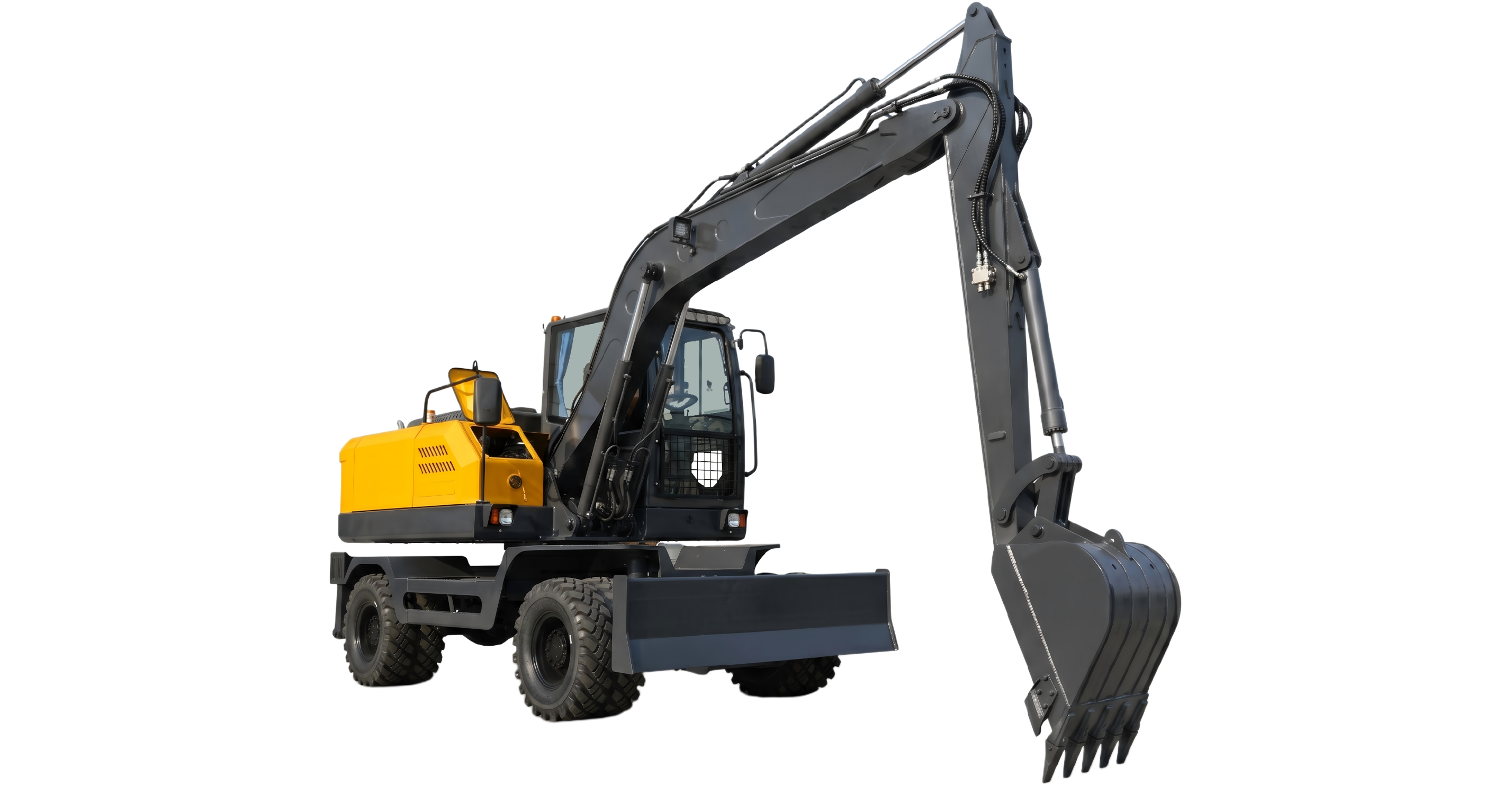

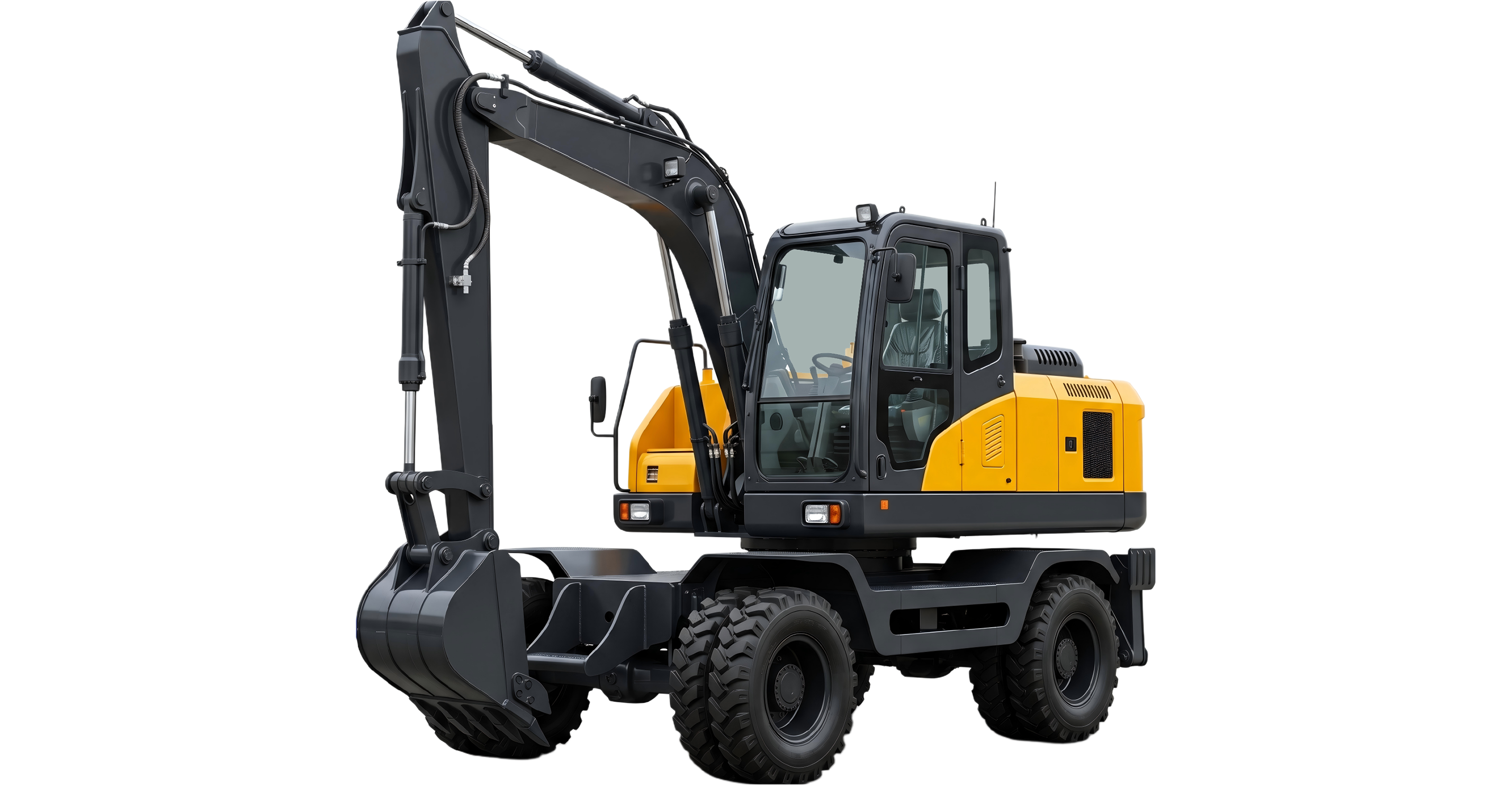

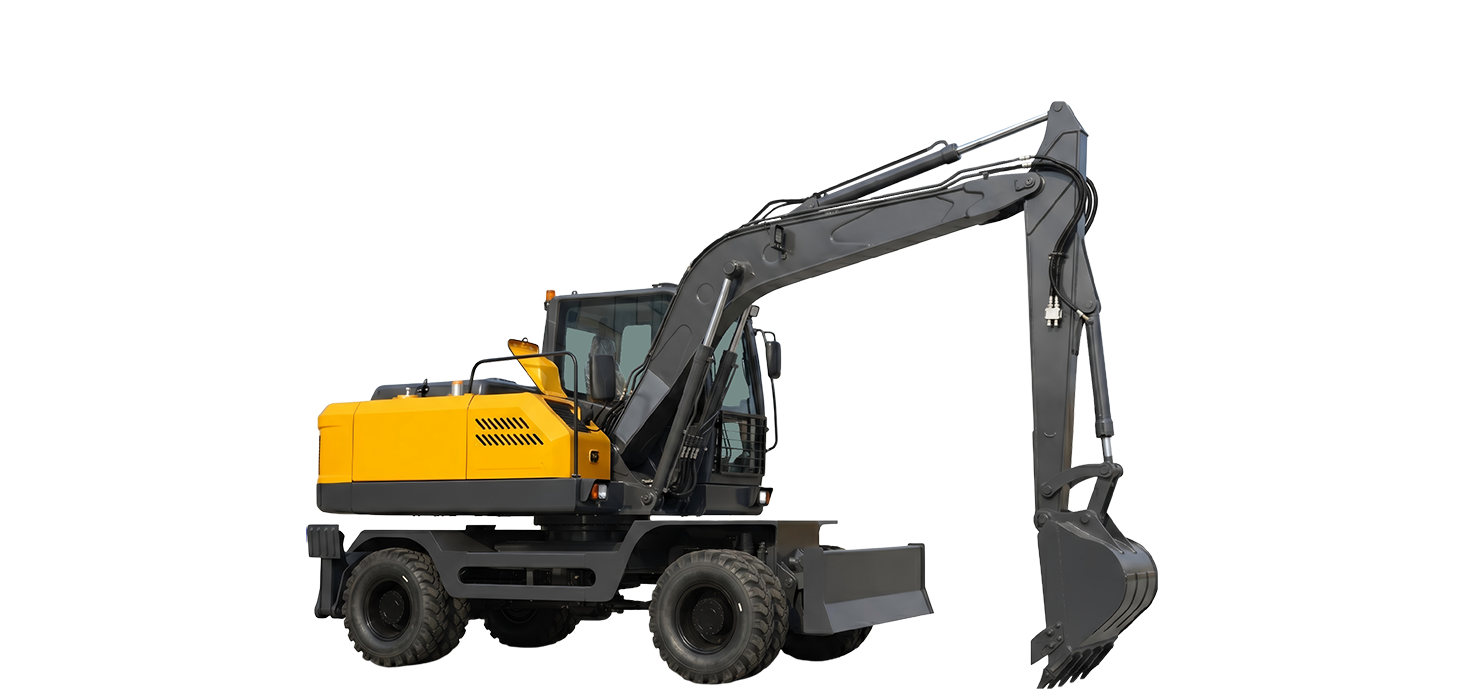

KW135Z

KW135Z

KW135Z
9700kg
Operating Weight

KW135Z

none

No Image

Key Features

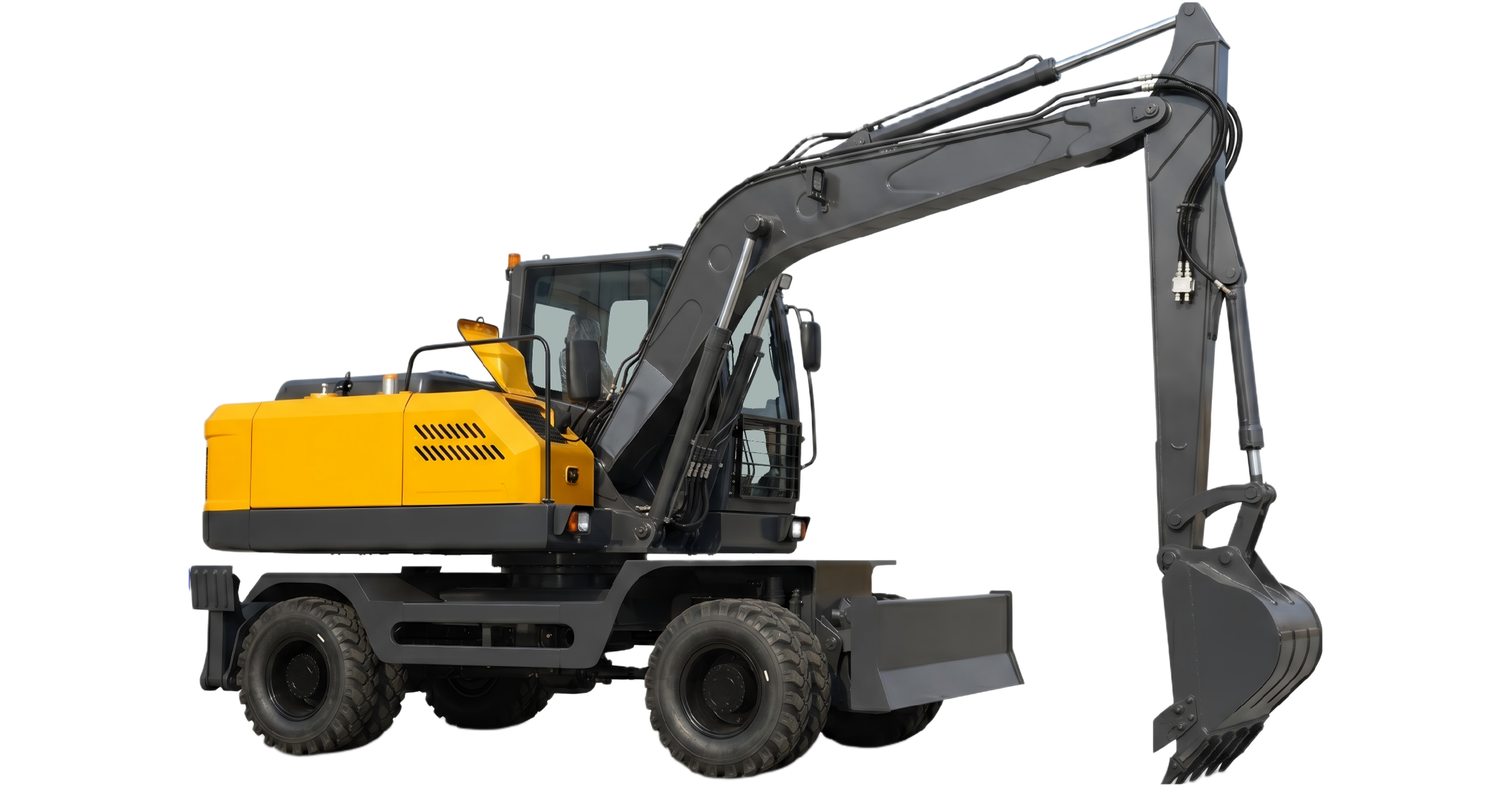

KW135Z SIDE

Technical Data

9700kg
Operating Weight
Tyre9.00-16
Wheelbase2500 mm
Arm Length2400 mm
Boom Length4000 mm
EngineYCF3085-T480
Power Speed62.5 kW / 2200 rpm
Swing Speed30 rpm
Travel TypeMechanical Drive
Gradeability25.5°
Travel Speed50 km/h
System Pressure/
Hydraulic SystemLoad Sensing System
Operating Weight9700 kg
Arm Digging Force30 kN
Emission StandardChina IV
Max Digging Depth3535 mm
Max Digging Reach7680 mm
Fuel Tank Capacity147 L
Max Digging Height7780 mm
Max Dumping Height5730 mm
Max Tractive Force35 kN
Bucket Digging Force39 kN
Transport Dimensions7153×2200×2940 mm
Min Tail Swing Radius2050 mm
Hydraulic Tank Capacity120 L

Attachments

360° Rotating Grapple

360° Rotating Grapple

Forklift Forks with Upper Tines

Forklift Forks with Upper Tines

Forks with Three Upper Tines

Forks with Three Upper Tines

High-Dump Grain Bucket

High-Dump Grain Bucket

Bucket

Bucket

Snow Blower

Snow Blower
